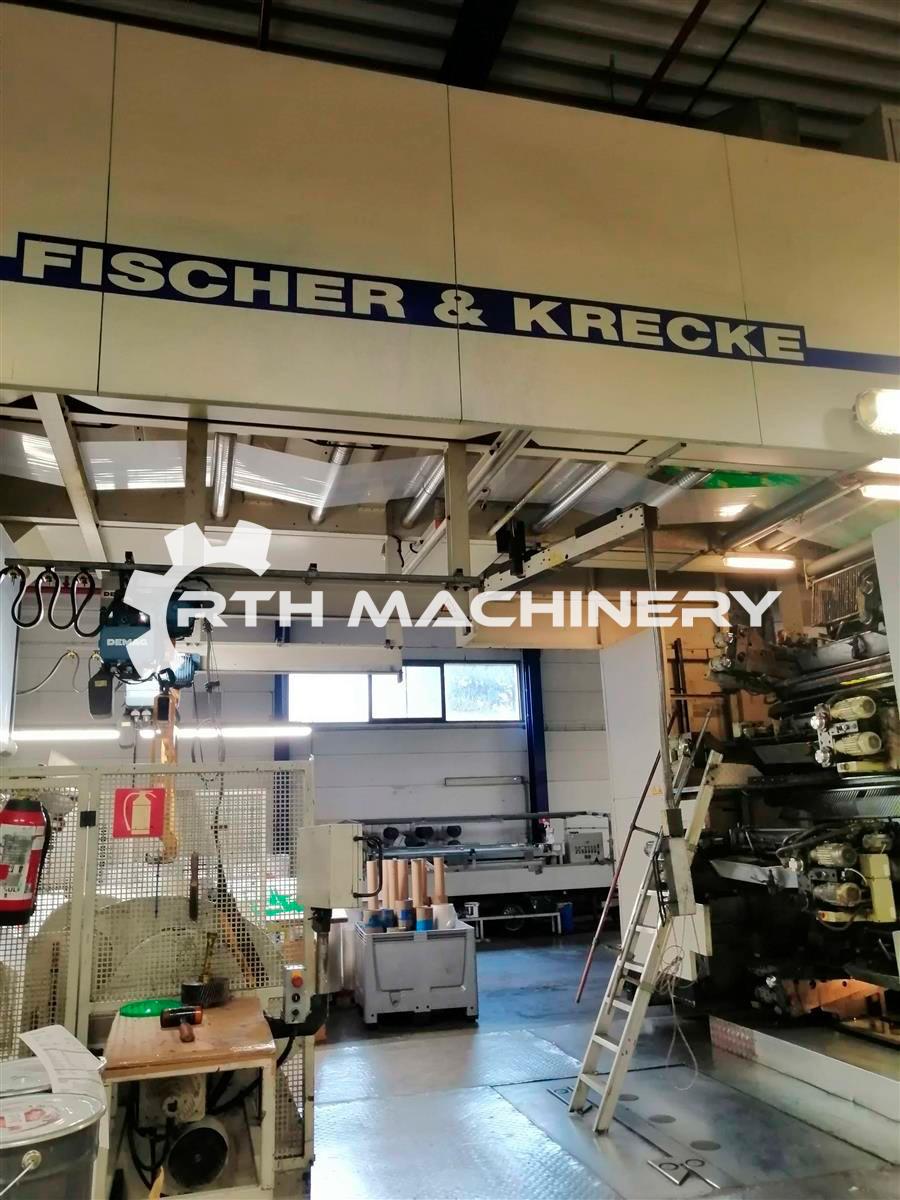

Ref. 8233- USED FISCHER & KRECKE 34DF/8 CNC, YEAR 1995
- Manufacturer: FISCHER & KRECKE
- Model: 34DF/8 CNC
- Year: 1995
- Number of colors: 8
- Print possibilities: 8+0
- Gearless: No
- Fast sleeve change: No
- 4 motor per deck CNC position system: Yes
- Computer supervision: Yes
- Web width (mm): 1320
- Print width (mm): 1300
- Min print repeat (mm): 380
- Max print repeat (mm): 1100
- Unwinder type: Turret FLYING SPLICE
- Max reel diameter unwinder (mm): 1000
- Rewinder type: Turret FLYING SPLICE
- Max reel diameter rewinder (mm): 1000
- Drying: 2 zones , 4 fans 2 gas burners
- Video camera: Yes
- Corona treatment : NO
- Web guides: FIFE
- Viscosity control: Yes
- Washing system: yes, F&K
- Inking system: Ceramic anilox + closed chambered doctor blade
- Anilox: 1x 80 L/cm, 2x 200 L/cm, 2x 120 L/cm, 4x 200 L/cm , 2x 320 L/cm , 3x 400 L/cm
- Print Sleeves: 200 sleeves repeat between 390 mm and 1090 mm ( 8 for each following repeat x 390 , 400, 410 , 420 , 430 , 450 , 480 , 510 , 530 , 540 , 550, 630 , 660 , 670, 740 , 780 , 800 , 850 , 880 , 930 , 990 , 1030 , 1050 , 1090 + 8 twinlock 740 mm + 8 twinlock 1030
- Print cylinders: Mandrels for sleeve s 6 x360 , 6x 400 , 6x 420 , 8 x 460 , 8x 530 , 6x 560 , 12 x 620 , 8x 780 , 8x 850 , 15 x 990 mm. Printing cylinders 8x 380 , 8x 390 , 12x 400 , 8×410 , 8x 450 , 6x 460 , 7x 470 , 4x 490 , 12x 500 , 8x 510 , 12x 530 , 8x 540 twinlock , 6x 560 , 8x 570 , 8x 580 , 8x 590 , 12×620 , 9x 640 , 12x 660 , 6x 670 , 6x 730
- …
