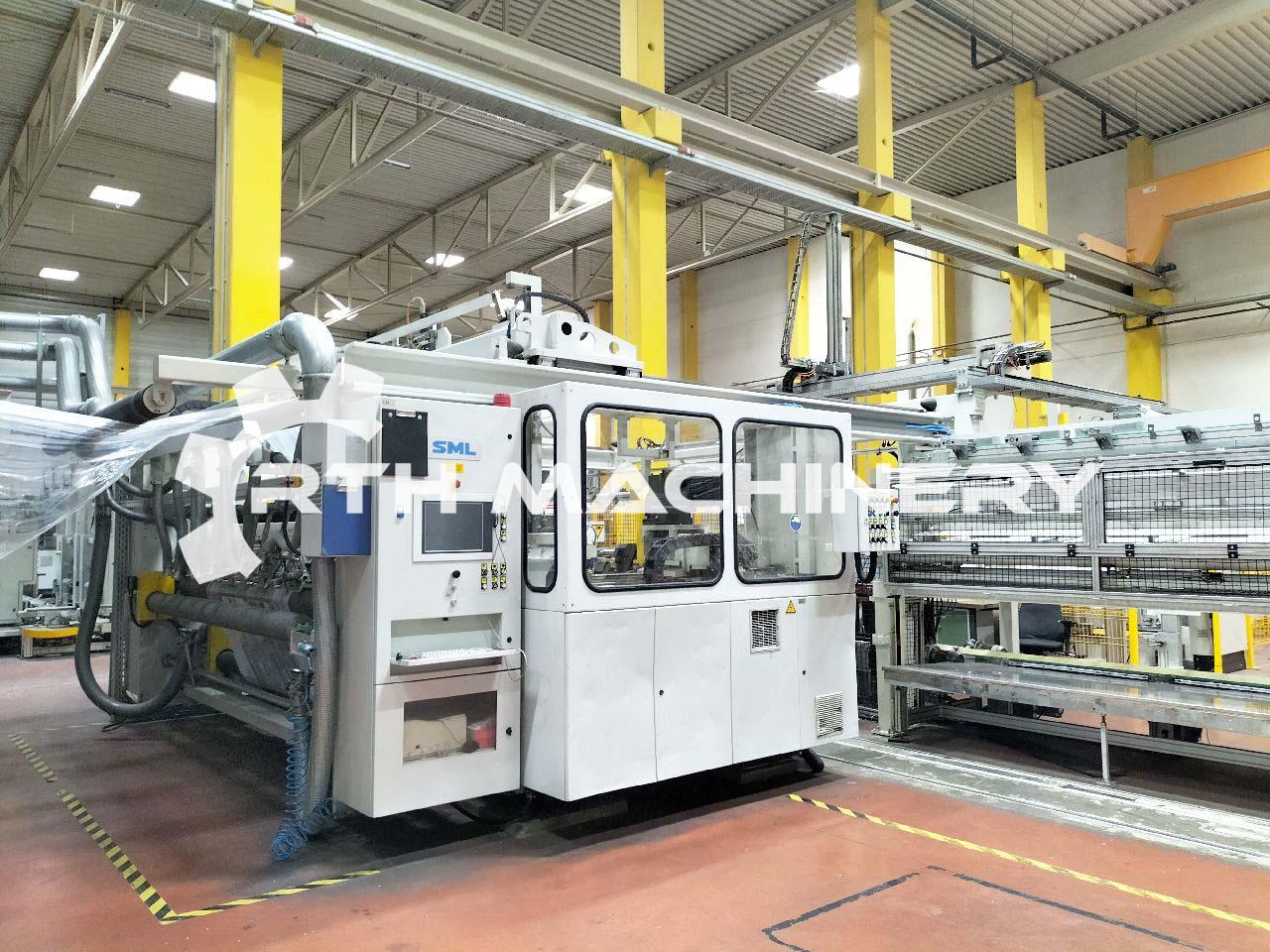

Ref. 6074- SML CAST COEX 7, YEAR 2008
- Manufacturer: SML
- Model: CAST COEX 7
- Year: 2008
- Number of layers: 7
- Material: Stretch film LLDPE
- Film width (mm): 2500
- Output (Kg/h): Nominal capacity 4600 kg /h Max net capacity at rewinder 2750 kg/h .
- Extruder 1 Layer ref: : A
- Screw diam 1: 75
- Description 1: Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Extruder 2 Layer ref: : B
- Screw diam 2: 75
- Description 2: Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Extruder 3 Layer ref: : C
- Screw diam 3: 75
- Description 3: Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Extruder 4 Layer ref: : D
- Screw diam 4: 90
- Description 4: Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Extruder 5 Layer ref: : E
- Screw diam 5: 75
- Description 5: Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Extruder 6 Layer ref: : F
- Screw diam 6: 75
- Description 6: Gravimetric dosing units 4components make Doteco, hydraulic screen changer. AC motors
- Extruder 7 Layer ref: : G
- Screw diam 7: 75
- Description 7: Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Head description: Automatic thickness profile control via thermal bolts. Internal deckling system,
- Die width (mm): 3100 mm with Internal deckling
- Chill roll unit: Double chill roller
- Thickness control system: Automatic thickness control system. double thickness gauge type with beta rays by Electronic System.
- Web guide: Oscillating frame
- Rewinder max reel diameter (mm): max single reel weight 80 Kg
- Rewinder description: Winder for machine rolls
- Additional Information:
- Nominal capacity 4600 kg /h
- Max net capacity at rewinder 2750 kg/h
- Thickness range 12- 70 micron
- Complete recycling system including :
- 3 Kongskilde exhaust for edge trims
- EREMA recycling regranulation unit
- Additional extruder. 8 for recycled material supplied by Erema unit
- Provision for edge encapsulation
- Complete end of the line rolls handling and palletizing
- …
