Ref. 4103- USED ATAC PROFLEX 1600, YEAR 2023
- Manufacturer: ATAC
- Model: PROFLEX 1600
- Year: 2023
- Extruder 3 layers
- Width: 1600 mm
- Materials: LDPE, LLDPE, mLLDPE, mDPE, HDPE, PP
- Thickness: 20 – 150 microns
- Speed line: 120 m/min
- Output: LDPE 350 kg/h
- A-B-C
- Extruder 1 Layer ref: : A
- Screw diam: 55 L/D Ratio: 32/1
- Description: Gravimetric dosing units SYNCRO 4 comp
- Extruder 2 Layer ref: : B
- Screw diam: 75 L/D Ratio: 32/1
- Description: Gravimetric dosing units SYNCRO 4 comp
- Extruder 3 Layer ref: : C
- Screw diam: 55 L/D Ratio: 32/1
- Description: Gravimetric dosing units SYNCRO 4 comp
- Die diameter: 300 mm
- Air Ring multi lip high performance type
- Take-off roller width and diameter: 1.600 mm x diameter 260 mm
- Rewinder type: Double automatic (back to back)
- Diameter: 480 mm
- 1600 mm Web Guide Controller with automatic sensors
- Corona Treatment: yes
- Electronic Tension Controller ( Loadcell )
- Horizontal Type of Oscillating Take-Up ( Haul-Off )
- 1 set Cold knives ( right – left ) – 5 pcs Middle knives
- Edge Trim Winder
- IBC ( Internal Bubble Cooling system ) – Syncro
- Automatic Gauge Control with Automatic Cooling Ring – Syncro
- Heat exchangers for I.B.C and O.B.C
- Hot Slitter

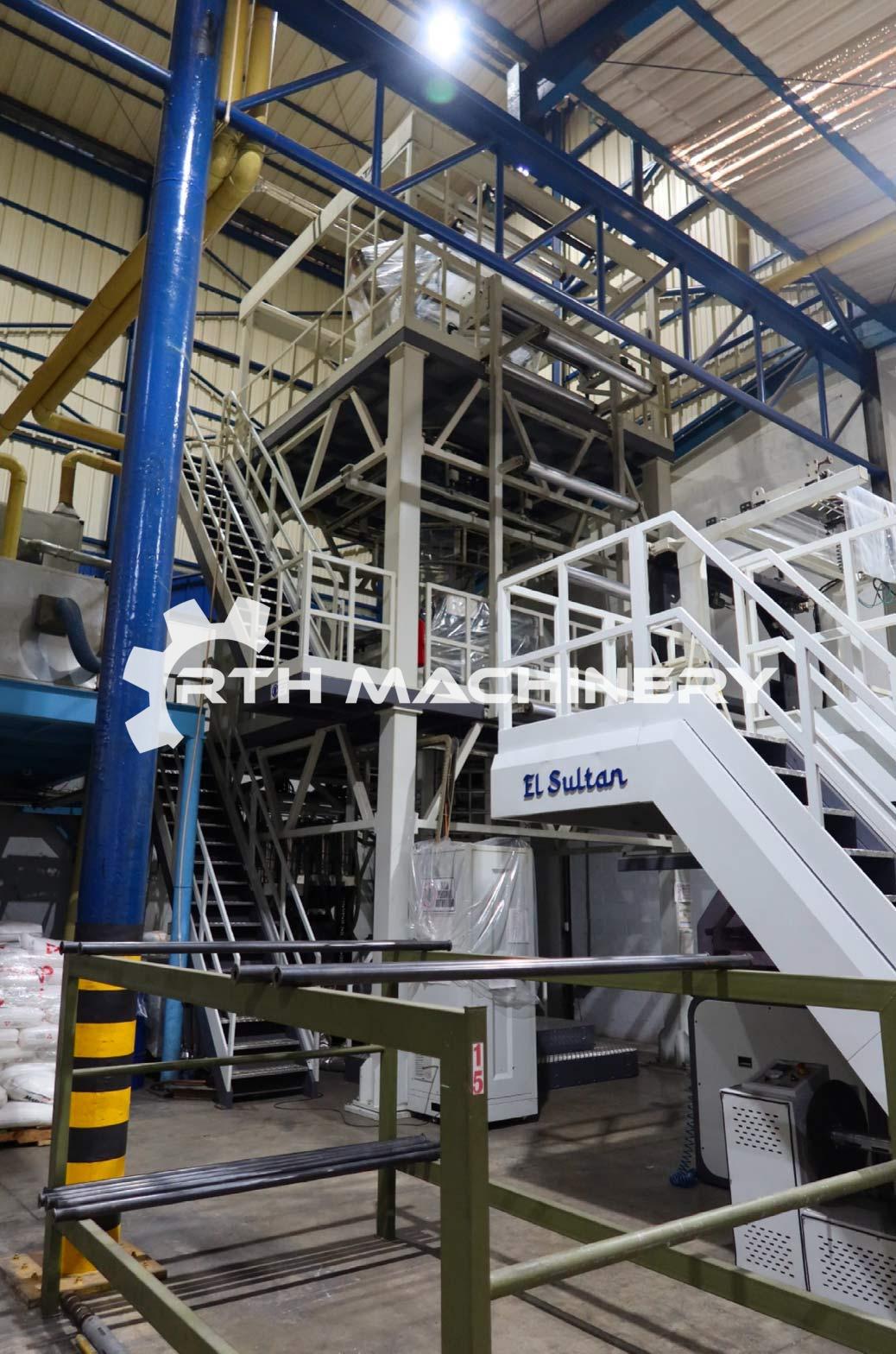

- Tower included, total height 10 m
- …
