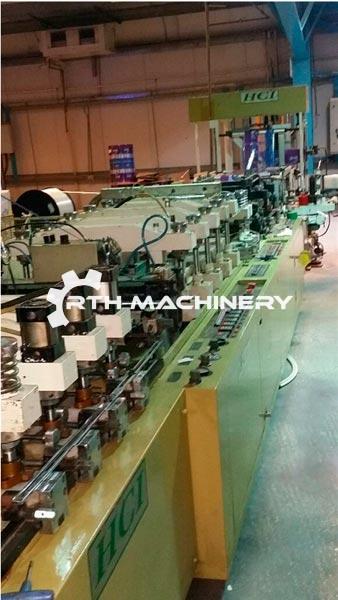

Ref. 21004- Soldadora HCI CONVERTING FTSC
- Manufacturer: HCI CONVERTING
- Model: FTSC
- Year: 2000
- Type of sealing/bags: Multiple type
- Additional information type of bags:
- -three side seal pouch max width 450mm-max height 700mm ; three side seal pouch with zipper max width 300mm -max height 480mm ; stand up pouch with k-seal 400-480mm -150 open gusset ; stand up pouch with k seal and zipper 300- 480mm–150 open gusset ; stand up pouch with arc seal 300-480mm –150 open gusset; stand up pouch with zipper and arc seal 300-480mm–150 open gusset; side gusset pouch 480- 700mm–150 open gusset
- Unwinder: dia 600 mm, 1000 mmCycle / min: mechancial 130 bags/min
- Additional informations: Type of sealing/bags – standup (open gusset), 3ss pouch, zipper pouches
- Sealings:, k seal, arc seal, 3side seal, zipper, open inserted gusset.
- Punch: euro punch, notch punch, hole punch, handle punch, gusset punch – possible to 3 punches on a same pouch – depends, pouch size, and requirements.
- Sealers: bag zipper sealer with cooling seal bar – 1 no ; bag gusset heat sealer – 1 set. bag side heat & cool sealer : staright – 4 nos; bag bottom top & bottom sealer – 1 no;bag bottom top sealer – 1 nos ;bottom (bottom selaer) – 1 no ups of stand up pouch – pouch height : 220 mm
- 4 ups of simple 3 side seal pouch = 100 mm pouch width / height.
