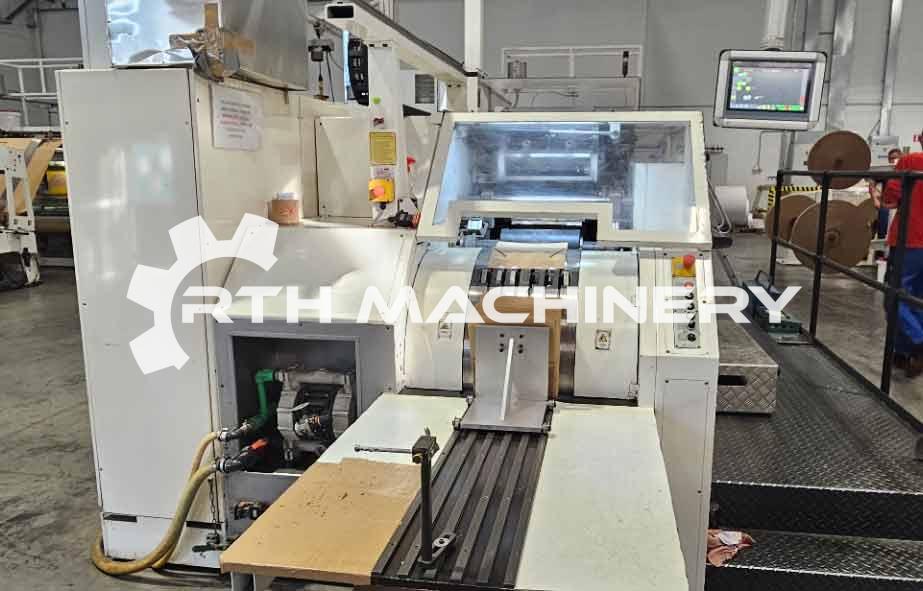

VENDIDA / SOLD Ref. 1066- Used WINDMOLLER & HOLSCHER GARANT TRIUMPH 3MR/SM/SERVO, YEAR 2017
- Manufacturer: GARANT MASCHINEN (WINDMOLLER & HOLSCHER)
- Model: TRIUMPH 3 MR/SM/SERVO
- Year: 2017
- Flat handle bags
- Bag widths: 105 – 320 mm
- Carrier bag widths: 180 – 320 mm
- Cut-off lengths:
- for bags: 240 – 650 mm
- for carrier bags: __ – 270 mm
- for carrier bags including
- handle max: __ – 650 mm
- Bottom width: 55 – 180 mm
- Bottom widths for carrier bags: 70 – 180 mm
- For the production of 1-ply SOS gaper bags, working for the reel
- Jumbo roll unwind, diameter 1300 mm, with motorized lateral adjustment, automatic web tension control, servomotor-driven brake for the paper undwind with suspended dancer roller, hydraulic reel lift-in, 1 pneumatic undwind shaft, diameter 76 mm.
- Motor-driven former plate for quick setting of tube width
- – solid frame to take former plate holder and former plate adjustment
- – motor-driven adjustment of the
- a) bag width in total
- b) side gusset depth
- c) drive side to the operator side
- – 3 sets of formats
- 1. 180 – 320 x 70 – 110
- 2. 220 – 320 x 70 – 160
- 3. 240 – 320 x 70 -180
- For bag widths under 180 mm fixed former plates are required.
- …
