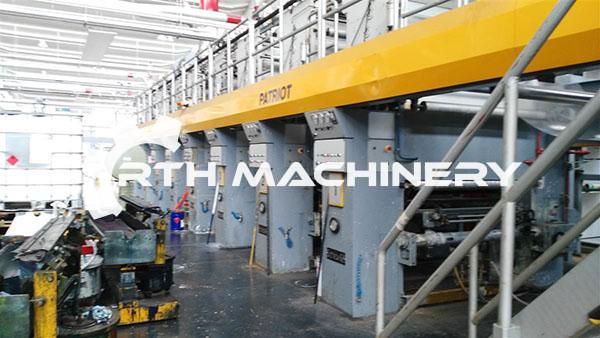

Ref. 10022- USED SCHIAVI PATRIOT, year 1995
- Manufacturer: SCHIAVI
- Model: PATRIOT
- Year: 1995
- Number of colors: 8
- Print possibilities: 7+1, 8+0
- Drive: Cardan
- Trolley system: Yes
- Web width (mm): 1430
- Print width (mm): 1400
- Print repeat range (mm): 400 – 1000
- Drying specifications: units 1 to 7 , 1 blowing fan each unit , single drying hood 2, 5 mt , and one main exhaust fan ; for unt 8 double drying hood 2 x 2,,5 mt , 1 blowing and 1 exhaust .
- Automatic air recirculation unit with LEL control by Nira for all units
- Drying heat surce: Thermo oil heaters
- Unwinder type: Turret Automatic
- Max reel diameter unwinder (mm): 1000
- Rewinder type: Turret Automatic
- Max reel diameter renwinder (mm): 1000
- Videocamera: BST
- Register controll: BOBST S 3100
- …
