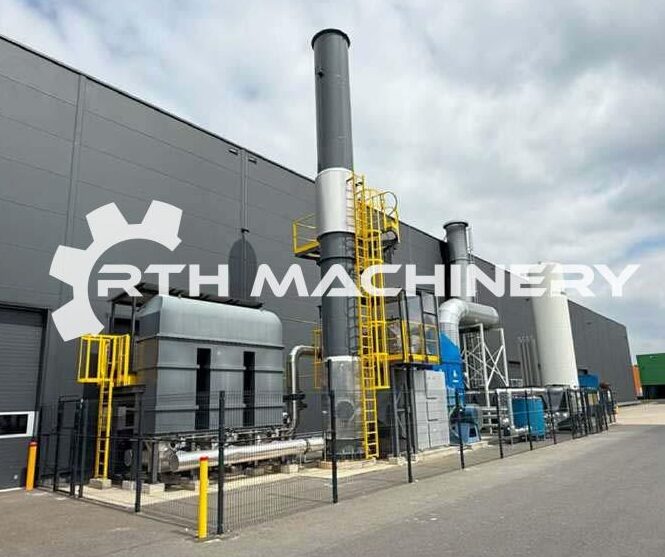

Ref. OT97- USED RTO COAPSYS, YEAR 2022
- Manufacturer: COAPSYS
- Year: 2022
- Production hours: 10.300 hours
- Paint shop, size 19 000 x 5 605 x 3 916 ( Height to the towers ) The highest height of the chimneys 14 000 (Chimney diameter -1200 )
- Max. working flow rate 50,000 Nm3/h
- Working temperature 15 – 30 Cº
- Maximum temperature 30 Cº
- Max. available pressure for ducts from process -30 Cº
- Moisture HR (working temperature) < 75 %
- Approx. total weight (ceramic + steel work) 4 500 kg
- Production : Suitable for eliminating paints, thinners, hardeners, glue ATTENTION (it is necessary to check the technical data sheets zeolite wheel ! )
- Gas, propan, 250 ⁓ 360 mbar ( can also be operated on natural gas )
- Compressed air 5 ⁓ 7 Bar
- Installed Electrical power (to be confirmed) 75 kW
- Burners 233 Kw (two burners)
- Pre Filtration F7 and filtration F9
- Atex classification – No
- Process air to treat
- Flow delivery 50.000 Nm3 /h
- Inlet temperature 20 °C
- Inlet depression (for process ducts, upstreams the 30 mm W.G)
- Inlet V.O.C. Concentration (LHV=7,500 kcal/kg) 43 mg/Nm3
- Desorbing air
- Flow delivery 1 700 Nm3 /h
- Inlet temperature to the heater MIX 126 °C
- Outlet temperature by the heater MIX 120 °C
- NG consumption in the heater MIX < 6 Nm3/h
- Concentrated air to regenerative
- Flow delivery 1 700 Nm3 /h
- Inlet temperature 38 °C
- Inlet V.O.C. Concentration (LHV=8500 kcal/kg) 1050 mg/Nm3
- Temperature in combustion chamber 850 °C
- Outlet V.O.C. Concentration < 20 mg/Nm3
- …
