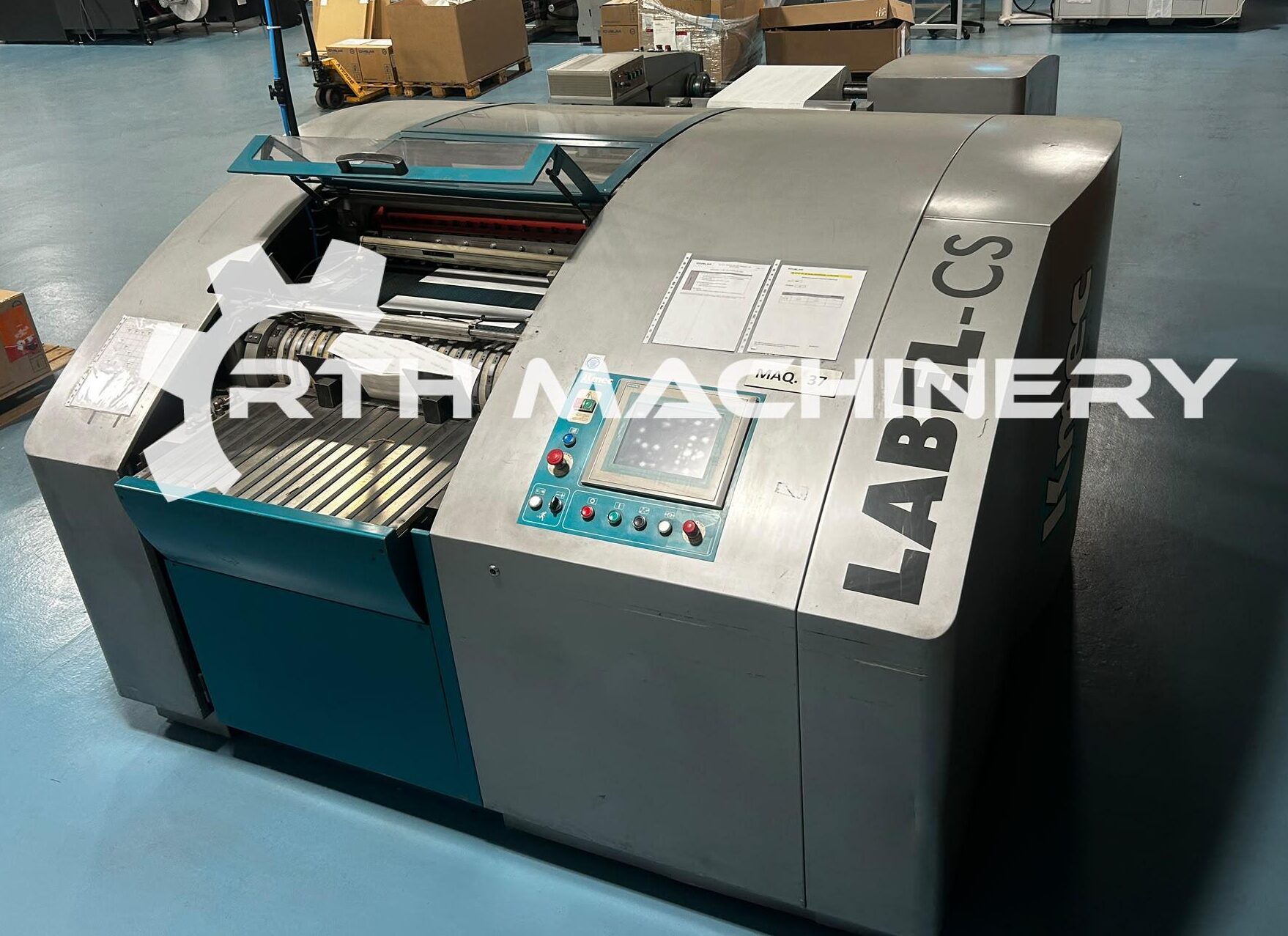

Ref. OT116- USED KMEC LABEL CS, YEAR 2004
- Manufacturer: KMEC
- Model: LABEL CS
- Year: 2004
- Width: 800 mm
- Materials: Papers from 50 to 120 g/m²., Tobacco complexes from 70 to 90 g/m²., Metallic papers from 50 to 100 g/m²., PBO from 45 microns (29 g/m²) to 90 microns., Double-coated HDPE from 75 to 90 g/m².
- Mechanical speed 2000 cuts/min
- Output formats* min. 50 mm / max. 200 mm
- Max. reel diameter 1000 mm
- Core reel diameter 76 mm / 152 mm
- Cutting accuracy +/- 0.15 mm
- Format counter via programmable PLC
- Format output position: Vertical
- Max. number of longitudinal cuts: 5
- Electrical connection 380V 3 PH 50 Hz
- Pneumatic connection 7 bar dry air
- The LABEL CS machine converts incoming rolls into label formats (of large widths and diameters). It has an unwinding unit followed by a sheeting unit where the longitudinal and cross-cutting systems are located, as well as the label collection system. The machine performs the cross-cut using a rotating blade and a fixed blade.
- …
