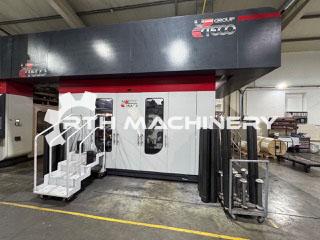

Ref. 8242- USED UTECO CRYSTAL 808, YEAR 2019
- Manufacturer: UTECO
- Model: CRYSTAL 808
- Year: 2019
- Number of colors: 8
- Print possibilities: 8+0
- Gearless: Yes
- Fast sleeve change: Yes
- 4 motor per deck CNC position system: Yes
- Computer supervision: Yes
- Web width (mm): 1550
- Print width (mm): 1500
- Min print repeat (mm): 400
- Max print repeat (mm): 850
- Unwinder type: Turret Automatic with roll loading system
- Max reel diameter unwinder (mm): 1000
- Rewinder type: Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm): 1000
- Drying: 2 zones 4fans with inverter contro, final drying tunnel 5 t long, 2 gas burners , Automatic air recirculation system in both zones with LEL control
- Videocamera: Yes Grafykontrol Progrex 500 with camera Matrix 500, 3ccd with 100 % inspection , click and drag register adj system , 100 % defekt control
- Corona treatment : Yes Ferrarini Benelli, driven
- Web guides: yes in and out
- Viscosity control: yes automatic Gama G 26
- Washing system: Automatic wash up system
- Inking system: Closed chamber doctor blades
- Print Sleeves: 224 printing sleeves 8 for each following repeat 400mm, 410, 420, 425 , 440 , 450, 460 , 470 , 480 , 500 , 510 , 520 , 530 , 540 , 560 , 580 , 600 , 620 , 640 , 650 , 660 , 670 , 680 , 700 , 720 , 740 , 760 , 780
- Machine is from end 2019 installed 2020
- Reprint system complete with register control Automatic printing pressure setting Kiss and Go
- Automatic printing pressure adj .with speed P2P
- …
