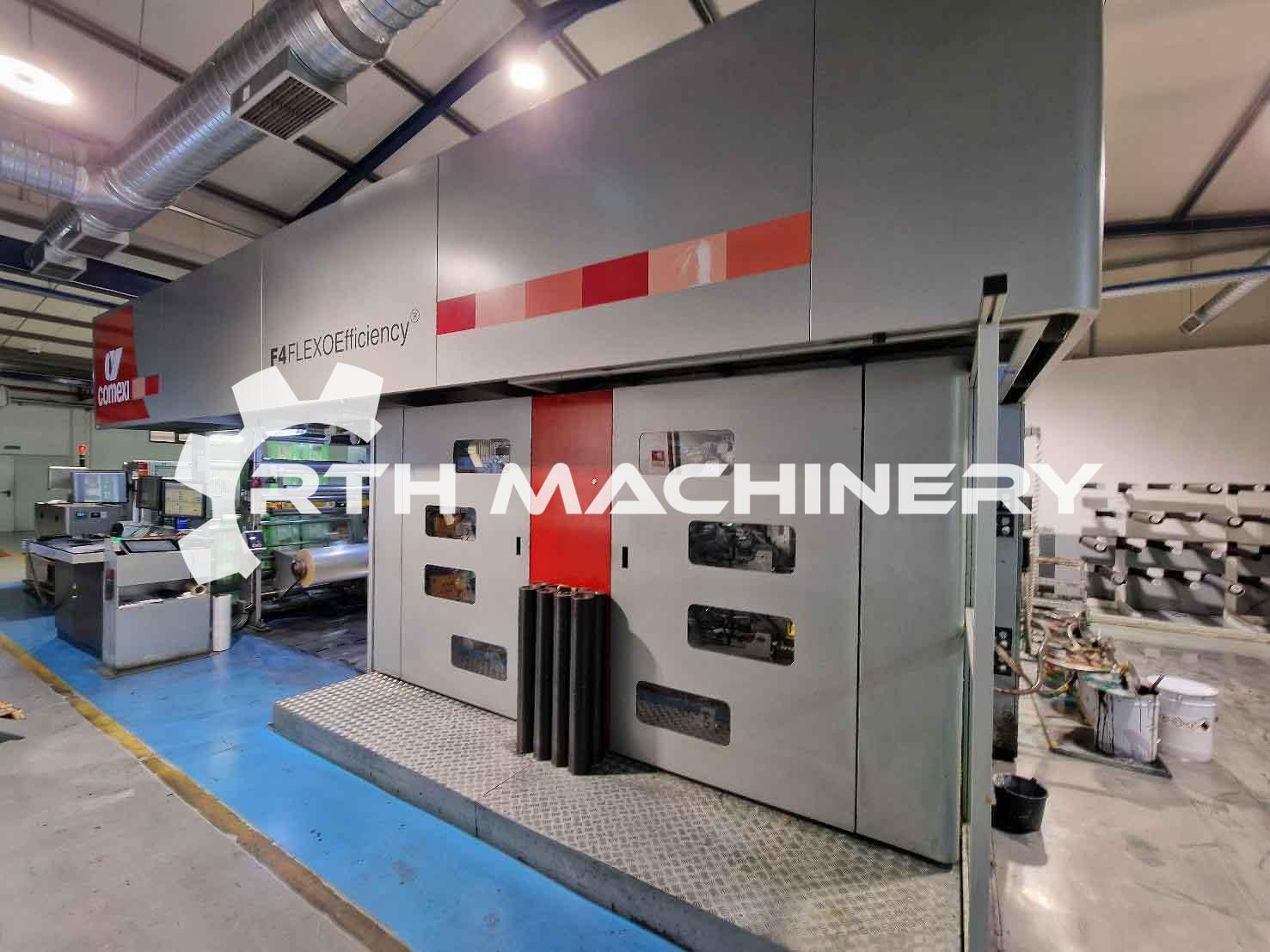

Ref. 8239- USED COMEXI F4
FLEXO EFFICIENCY, YEAR 2014
- Manufacturer: COMEXI
- Model: F4
FLEXO EFFICIENCY
- Year: 2014
- Number of colors: 8
- Print possibilities: 8+0
-
Gearless: Yes
-
Fast sleeve change: Yes
-
4 motor per deck CNC position system: Yes
- Computer supervision: Yes
- Web width (mm): 920
-
Print width (mm): 870
- Min print repeat (mm): 260
- Max print repeat (mm): 600
- Unwinder type: Simple, shaftless , Max reel weight 1250 kg, 2 6” (152.4mm) reel shafts
- Max reel diameter unwinder (mm): 1000
-
Rewinder type: Turret
, automatic, Max reel weight 1250 kg, 2 6” (152.4mm) reel shafts
- Max reel diameter rewinder (mm): 1000
- Drying: Electric – 4 m tunnel with 12 blowers
- Video camera: AVT Print vision
- LDPE – 20μ – 150 μ, LLDPE – 20μ – 150 μ, HDPE – 10μ – 150 μ, BOPP – 12μ – 60 μ, PET – 12μ – 50 μ, OPA – 15μ – 50 μ, CAST PP – 20μ – 70 μ, PAPER 40 – 80 gsm, LAMINATED Film/Film 150 μ
- Mechanical speed: up to 300 m/min
- Web guide BST OPG, motorized, ultrasonic cell BEFORE PRINTING. Edge detection
- Web guide BST brand, manual. Edge detection by photocell
- AUTOMATIC WASHING WITH A SINGLE PUMP – MODEL EXCITINK EXCEL. Viscometers integrated in the self cleaning. The cleaning of the viscometers is done automatically by the self cleaning system
- Integrated ink temperature control system
- CINGULAR DOT ®2. Automatic pressure adjustment with the CINGULAR DOT² system via video camera at the start of each job. The CINGULAR DOT², performs automatic pressure adjustment + register, according to the actual print
- Chiller
- Included with the machine a plate mounter BIEFFEBI, Cliché cleaner and distiller for solvent
- Anilox: 18 (420×7, 380×1, 180×1, 160×2, 200×1, 220×1, 140×1, 280×1, 120×2, 80×1)
- Sleeves: 192 (265×22, 275×8, 285×8, 300×10, 310×8, 325×12, 340×8, 350×10, 360×10, 380×12, 400×8, 420×18, 440×9, 450×8, 460×15, 480×12, 500×14)
- Visible in production
- …
