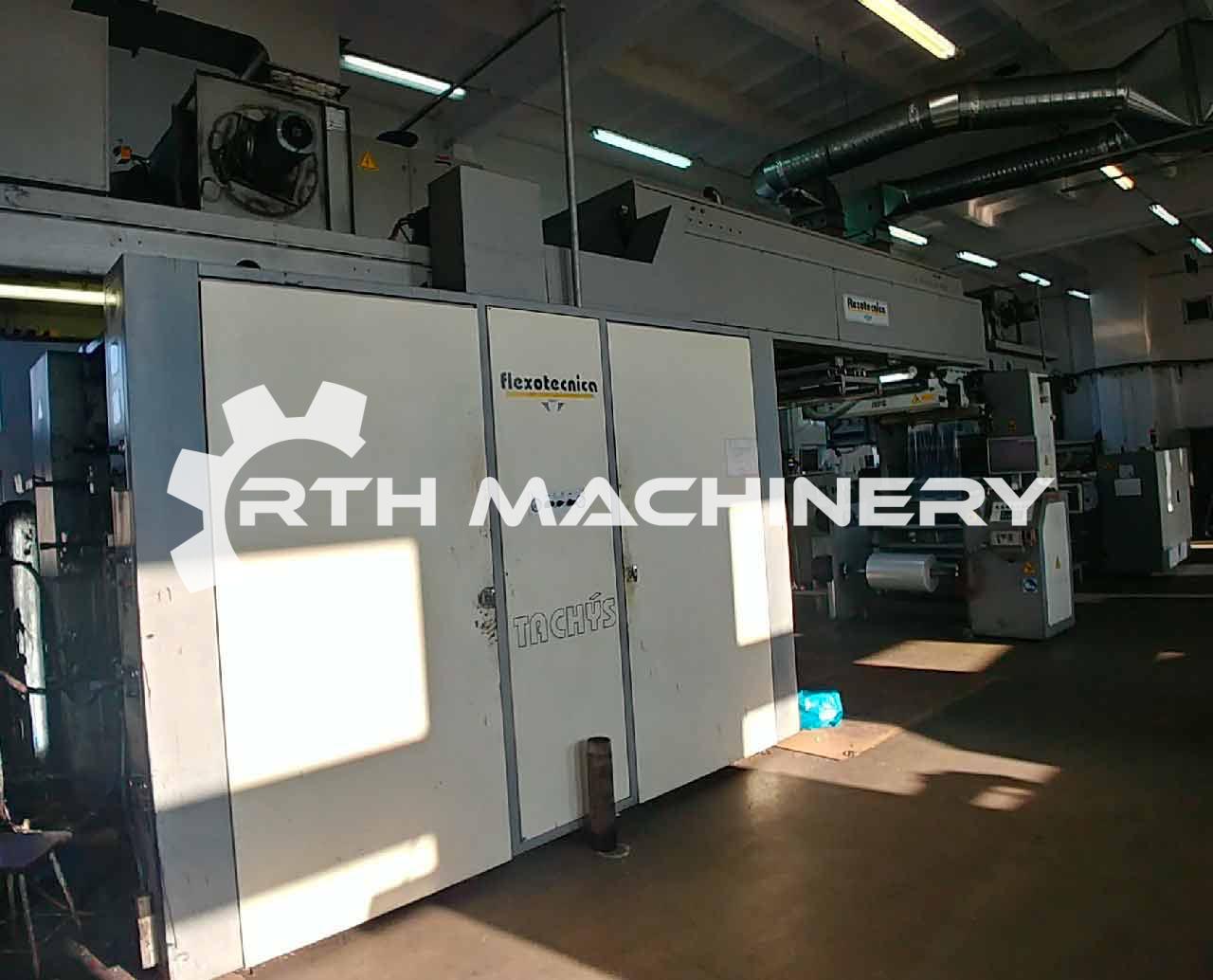

Ref. 8197- USED FLEXOTECNICA TACHYS, year 2003
- Manufacturer: FLEXOTECNICA
- Model: TACHYS
- Year: 2003
- Number of colors: 8
- Print possibilitIes: 8+0
- Gearless: No
- Fast sleeve change: Yes
- 4 motor per deck CNC position system: Yes
- Computer supervision: Yes
- Web width (mm): 950
- Print width (mm): 900
- Min print repeat (mm): 280
- Max print repeat (mm): 650
- Unwinder type: double bracket unwinder with dancing roller tension control
- Max reel diameter unwinder (mm): 800
- Rewinder type: Turret automatic rewinder
- Max reel diameter rewinder (mm): 800
- Drying: 2 zones , 4 fans , final tunnel ,Electric Heaters
- Videocamera: 3chip camera system, with additional inspection unit
- Corona treatment : Yes
- Web guides: Yes,BST guide before drum, BST guide before rewinder
- Inking system: closed doctor blade chambers , electric ink pumps
- Anilox: 25
- Print Sleeves: 236
- Additional Information: – banana roll- chill roller- 3 zones of tension control- slitting unit- drum temperature controller- gear 10mm step- speed 250m/m, depending on a product- Dimensions: 14480 mm long, 4820 mm height, around 5500mm total width
- …
