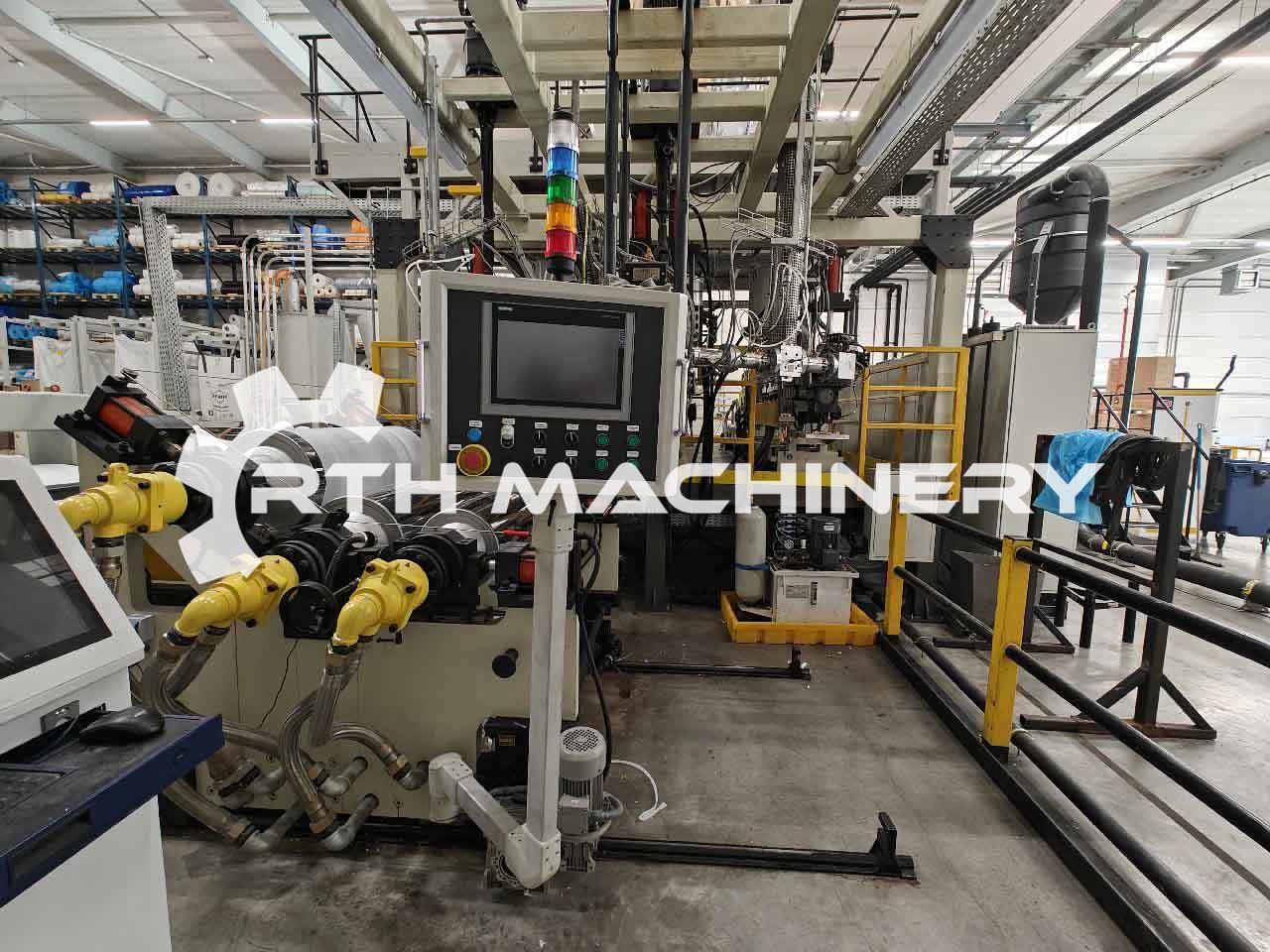

Ref. 6068- USED JWELL ACS 510, YEAR 2021
- Manufacturer: JWELL
- Model: ACS 510
- Year: 2021
- Number of layers: 3
- Overhaul/renovation: Revised to CE norm 2022
- Film width (mm): 900
- Extruder 1 Layer ref: : A
- Screw diam 1: 150mm
- Description 1: Ferlin Gravimix, FGB 530
- Extruder 2 Layer ref: : B
- Screw diam 2: 150mm
- Description 2: Ferlin Gravimix, FGB FLECS 1/1
- Extruder 3 Layer ref: : C
- Screw diam 3: 150mm
- Description 3: Ferlin Gravimix, FGB FLECS 1/1
- Die width (mm): 900mm
- Chill roll unit: Three roller calender No.1 roller diameter 300mm—1000mm (up) No.2&3 roller diameter 400mm—1000mm (middle and down)
- Thickness control system: SCANTECH
- Corona treatment: yes
- Additional Information:
- Including :
- – Coating line TRESU => in-line
- – Sheeter
- – Automatic stapler
- – Corona treater
- – UV curing
- – Gravitex systems
- Produced PP , LDPE , HDPE , PS mainly for plant pins
- PP 350 – 600 micron ( produced ) but it can be up to 1050 micron
- Die types: hanger type mold
- Mould width: 900mm
- Product thickness: 0.3-1.5mm
- Net width of sheet (after be trimmed edge) Width 750mm
- …
