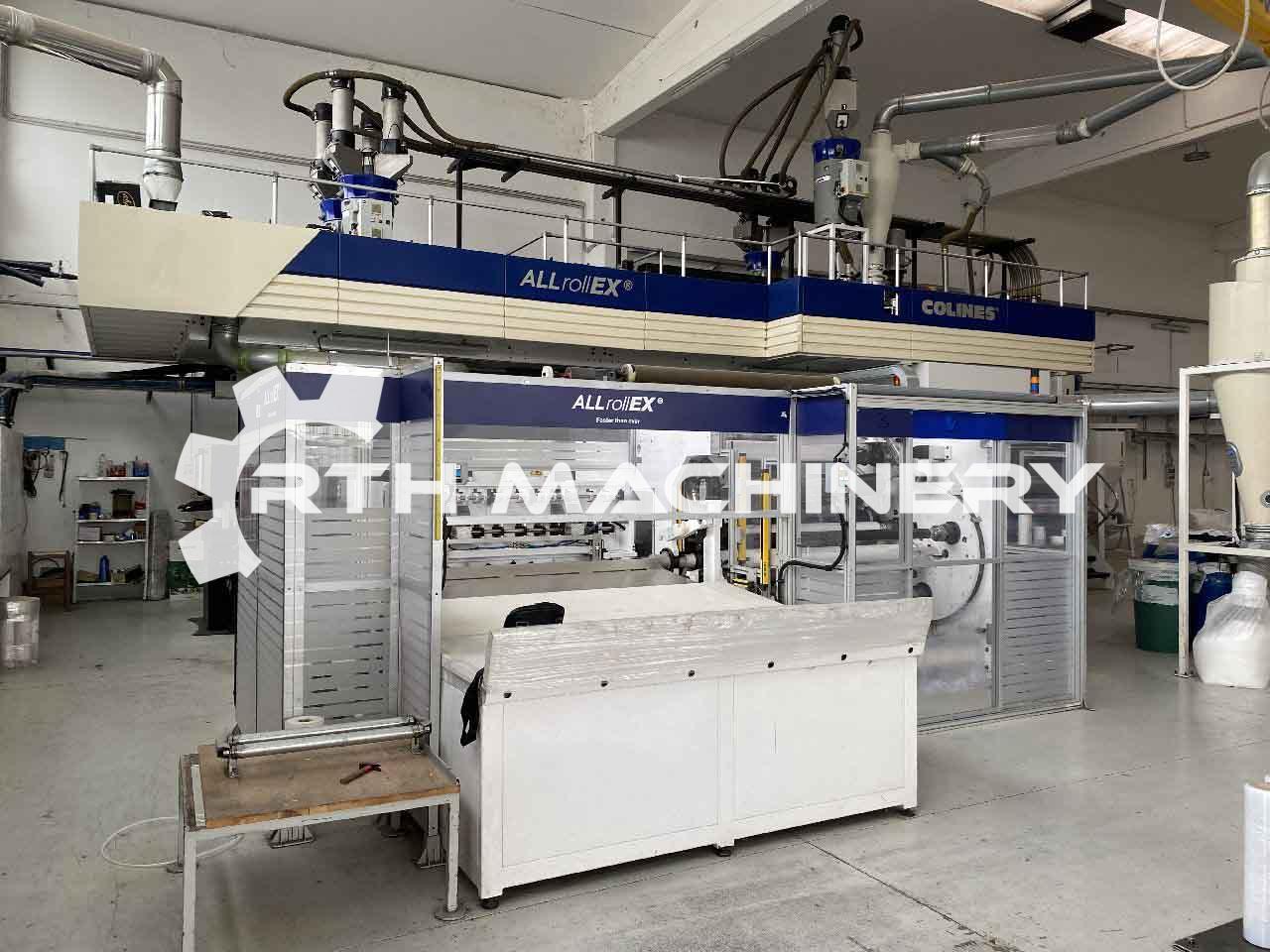

Ref. 6067- USED COLINES ALLROLL EX 1500, YEAR 2018
- Manufacturer: COLINES
- Model: ALLROLL EX 1500
- Year: 2018
- Number of layers: 5
- Film structure: ABCBD
- Material: Stretch film LLDPE
- Film width (mm): 1500
- Speed (m/min): 500 MPM
- Output (Kg/h): 1100kg/h
- Extruder 1 Layer ref: : A
- Screw diam 1: 80
- Description 1: Main motor 135 Kw AC motor , gravimetric dosers grado 2 comp
- Extruder 2 Layer ref: : B
- Screw diam 2: 110
- Description 2: Main motor 220 Kw AC motor , gravimetric dosers grado 4 comp
- Extruder 3 Layer ref: : C
- Screw diam 3: 55
- Description 3: Main motor 50 Kw – Ac motor, Gravimetric dosing unit Grado 2 comp
- Extruder 4 Layer ref: : D
- Screw diam 4: 55
- Description 4: Main motor 50 Kw – Ac motor, Gravimetric dosing unit Grado 2 comp
- Head description: MAke : Cloren, vacuum box, edge pinning
- Chill roll unit: Main chill roller diam 1400mm
- Thickness control system: Automatic Electronic system
- Rewinder description: Turret with 3 shafts, 25 sec cycle time. Available with 2 inch shafts for hand reels and 3 inch for machine and jumbo reels.
- …
