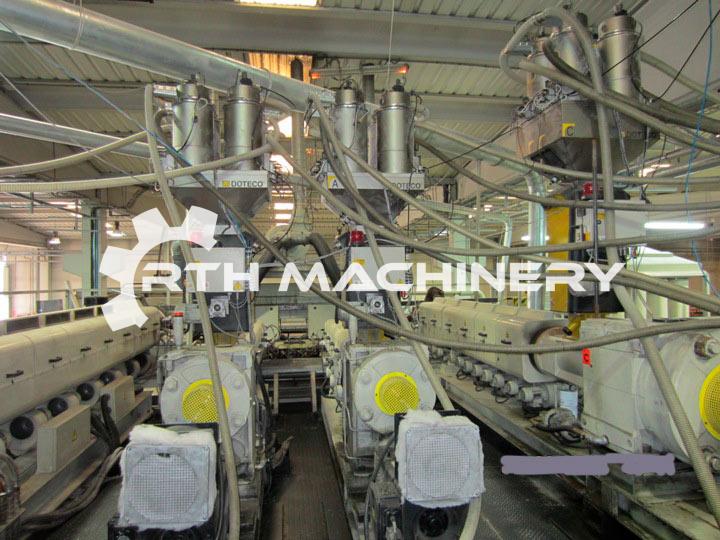

Ref. 6050- USED TECHNO COATING ENGINEERING, YEAR 2004
- Manufacturer: TECHNO COATING ENGINEERING
- Model: 2000/5 PLUS 4E
- Year: 2004
- Number of layers: 5
- Overhaul/renovation: New winder 2015
- Film structure: ACBCD
- Material: Stretch film LLDPE
- Film width (mm): 2000
- Speed (m/min): 600 mechanical
- Output (Kg/h): 1350
- Extruder 1 Layer ref: : A
- Screw diam 1: 80mm
- Description 1: Tecno Coating Engineering L/D 30. Bimetallic cylinder. Motor Power 85 kw AC. Heating power 28 kw. RPM 130 . Gravimentric dosing unit, 4 components. Hydraulic screen changer.
- Extruder 2 Layer ref: : B Screw diam 2: 160mm
- Description 2: Tecno Coating Engineering. L/D30. Bimetallic cylinder. RPM 110 . Motor power 300 kw AC. Heating power 90 kw. Gravimentric dosing unit, 4 components. Hydraulic screen changer. Thermo regulation and cooling in grain feeding area. Extruder B2 for trimed edge refeeding. Screw diam. 130mm;
- Extruder 3 Layer ref: : C Screw diam 3: 130mm
- Description 3: Tecno Coating Engineering. L/D 30mm. Bimetallic cylinder. RPM 130. Motor power 200 kw AC; Heating power 75kw; Gravimetric dosing unit 4 components. Hydraulic screen changer.
- Extruder 4 Layer ref: : D Screw diam 4: 80mm
- Description 4: Tecno Coating Engineering. L/D 30. Bimetallic cylinder. Motor Power 85 kw AC. Heating power 28 kw. RPM 130. Gravimetric dosing unit 4 components. Hydraulic screen changer.
- Head description: Brand EDI- Autoflex IVH 40. Gap 0,1-1mm. Airknife double chamber. Vacuum box, double. 2 fans 4 kw each; edge pinning.
- Die width (mm): 2600
- Chill roll unit: 2 chill rollers with independent drive. 1st 960mm diam; 2nd 450mm diam. Width 2700mm.
- Thickness controll system: Automatic thickness control 91 Thermobolts
- Web guide: E&L
- Rewinder description: Hand reels and machine reels Make: Colines year 2015,
- Additional Information:
- Edge slit, grinding and refeed in extruder B throu additional. Edge trim and recycling system , pneumatic transport system between all components. Buffering silos.
- …
