Ref. 4108- USED KIEFEL KIRION 70/100/70, YEAR 2008

• Manufacturer: KIEFEL
• Model: KIRION 70/100/70
• Year: 2008

KIEFEL KIRION® 70/100/70 F 3-layer co-extrusion system,

KIRION® 250/500-3, 3-layer die head with 400 mm and 500 mm die insert;

KIRION® PERFECT COOL Ø 400 mm,

KIRION® T 2200 reversing take-off,

KIRION® W 2200 M2 automatic center/surface/gap winder and the

KIRION® C automation system

3-layer Coextruder

mounted complete on moveable frames with:

• water-cooled gear boxes with integral thrust bearings

• heating/cooling combination with ceramic heating bands and blowers

• material feeding with magnetic separator, flat slide valve and level control

• temperature control with heating circuit control/monitoring with wear-free solid state relays

• AC Vector direct drives

• connection to the KIRION® C automation system via distortion free CAN bus

• mechanical screw extractor(s) (one spindle can be used for different KIRION® extruder

sizes)2

A (outer)

1 1 KIRION® 70/26 F

• water-cooled feed barrel with grooved tungsten carbide bushing

• screw made of special wear-resistant steel

• high capacity mixer HEM

• number of heating zones: 3

• main drive size: 78 kW (105 HP)

• screw diameter: 70 mm (2.7″)

• screw length: 26:1 L/D

• including sound insulation box for blower

B

2 1 KIRION® 100/26 F

• water-cooled feed barrel with grooved tungsten carbide bushing

• screw made of special wear-resistant steel

• high capacity mixer HEM

• number of heating zones: 4

• main drive size: 145 kW (194 HP)

• screw diameter: 100 mm (3.9″)

• screw length: 26:1 L/D

• including sound insulation box for blower

C

3 1 KIRION® 70/26 F

• water-cooled feed barrel with grooved tungsten carbide bushing

• screw made of special wear-resistant steel

• high capacity mixer HEM

• number of heating zones: 3

• main drive size: 78 kW (105 HP)

• screw diameter: 70 mm (2.7″)

• screw length: 26:1 L/D

• including sound insulation box for blower

Remark:

All extruder feed sections are made of through hardened tool steel.

Hardness range 60 – 62 HRC3

54 1 Corona Treater Type CSDS 2200 B

for single or two-sided treatment of a tubular film, including:

• segmented electrode with 10 mm (0.39″) wide segments for lengthwise notch

• centralized operation through CAN-Bus connection to KIRION® C

• proportional control of generator power, input in Wmin/min²

• pulse amplitude/width modulation for very low corona power

• high humidity start assembly

• ozone suction system with control system

• flash light for alarms

• one set of surface tension test fluid

• concave idler roll installed between the two treater rolls

• max. treatment width: 2200 mm (86.61″)

• generator power: 9 kW

Film thickness, production speed and surface tension as per performance data sheet 81/005 S.

Surface tension measured according to DIN ISO 8296 directly after film production.

55 1 Mechanical Mounting Parts for Corona Treater

for the installation of the treater on a single station winder of the first tower platform.

56 1 Nip Roll 2200

mounted on crane rail, with

• nip roll assembly with one rubber coated roller and one steel coated roller

• AC drives

• load cell roller for the tension control prior to the secondary nip roll assembly

57 1 Edge Trim Cutting Device 2200 W

adapter to allow installation of twin blade holders

58 2 Twin Blade Holder – W

for multi-web slitting, knife exchange while running

59 1 Linear and Horizontal Blade Oscillation 2200 W

of the twin blade holders in the secondary nip roll assembly4

• for even wear of the blades and consistent slitting quality

• for better roll geometry

• no edge build-up

60 1 Edge Trim Guide Fingers

for the edge trim, installed in the secondary nip roll assembly

61 1 Edge Fold Slitter 2200

for air supported opening of tubular film by a spring loaded system

62 1 Film separation rollers 2200

2 additional non-driven guiding rollers after the secondary nip roll assembly to achieve a higher

wrap of the nip rollers and a higher force to separate the film

63 1 Separate frame

Frame to raise the secondary nip roll assembly, incl. draft for the arrangement of the floor plates

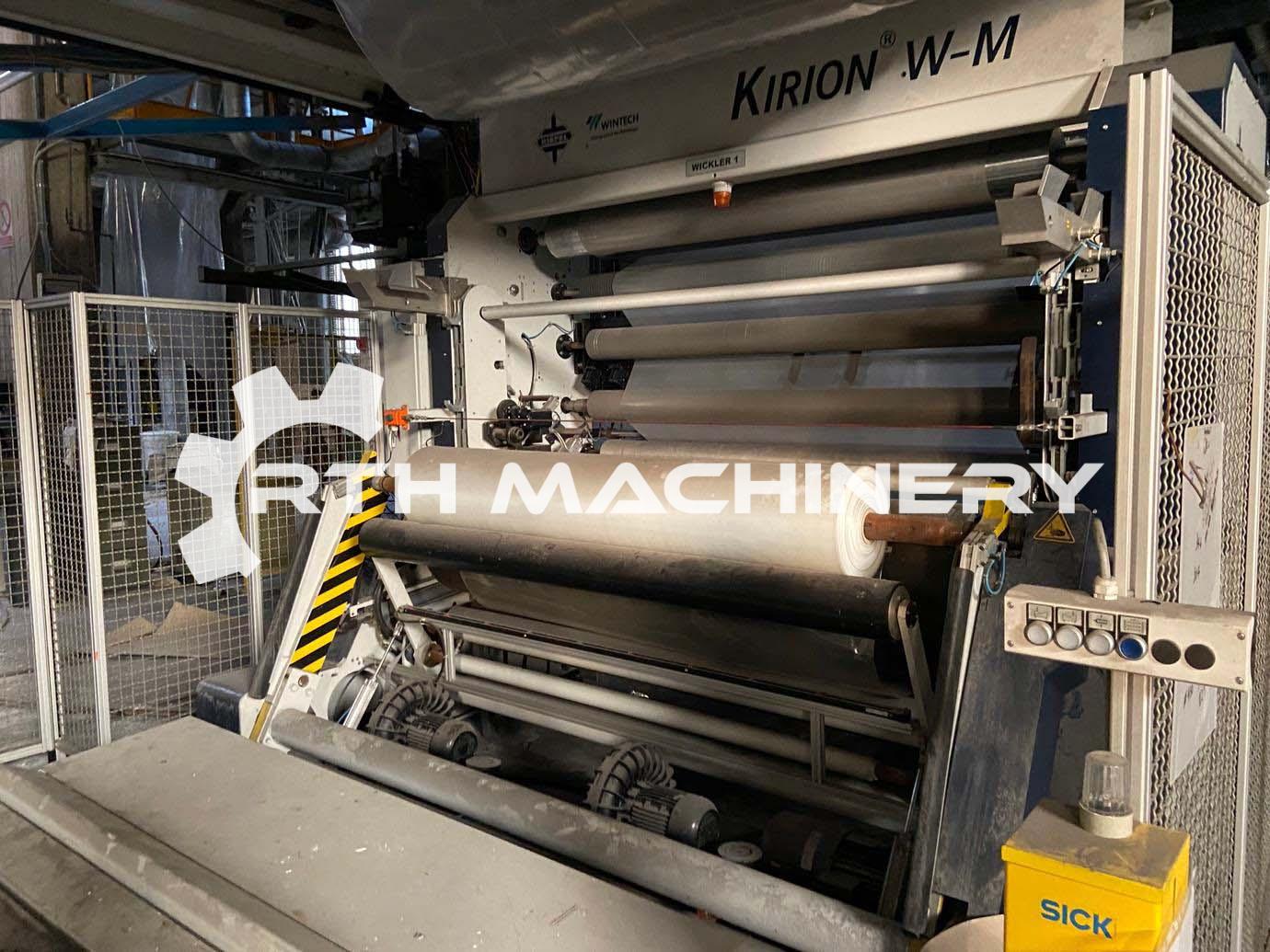

64 1 KIRION® W 2200 M2

Automatic double station winder with taper tension control system, contact winding mode,

winding shaft magazine, AC drives, plasma coated s-wrap per winding station with one driven

roller, touch screen mounted in switch cabinet, switch cabinet mounted on winder side guards,

hydraulic power unit

• maximum layflat width: 2200 mm (86.6″)

• Web tension range: 40 – 400 N (8.8 – 88 lbs)

• Taper tension range: 40 – 400 N (8.8 – 88 lbs)

• suitable for winding shaft dia.: 76 & 152 mm (3 & 6″)

Max. roll diameter: 1200 mm
