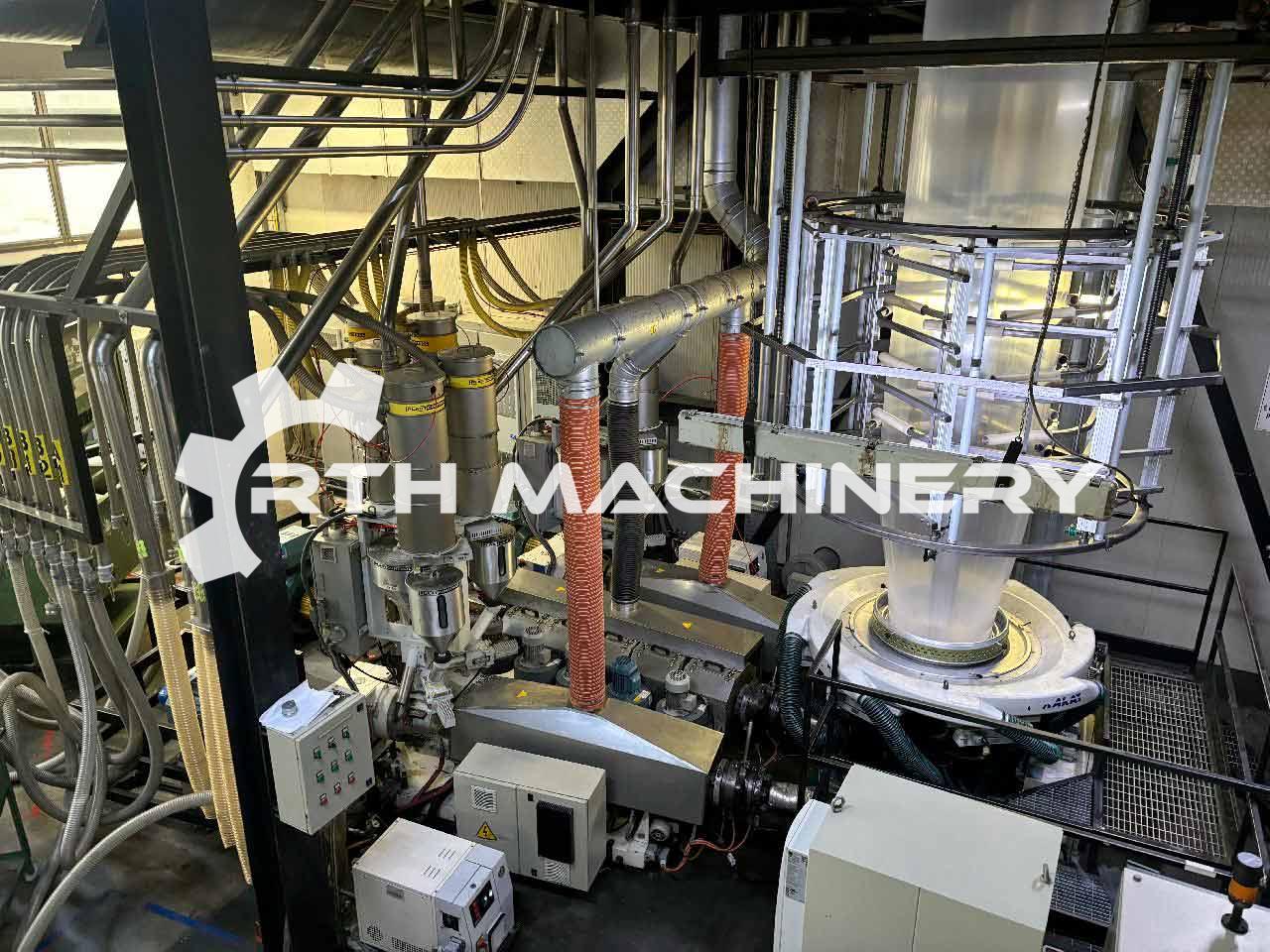

Ref. 4088- Used BANDERA 2400, year 2006
- Manufacturer: BANDERA
- Year: 2006
- Number of layers: 3
- Film structure: ABC
- Material: LDPE, LLDPE.
- Film Width: 2400
- Output (Kg/h): 400kg/h depending on materials
- Extruder 1 Layer ref: : A
- Screw diam 1: 65mm
- Description 1: AC motor 75kW, gravimetric dosing unit Plascontrol 4 comp, with vacuum suction system. Sella water thermo-regulation for feeding area, lever type screen changer
- Extruder 2 Layer ref: : B
- Screw diam 2: 85mm
- Description 2: AC motor 132kW, gravimetric dosing unit Plascontrol 4 comp, with vacuum suction system. Sella water thermo-regulation for feeding area, lever type screen changer
- Extruder 3 Layer ref: : C
- Screw diam 3: 65mm
- Description 3: AC motor 75kW, gravimetric dosing unit Plascontrol 3 comp, with vacuum suction system. Sella water thermo-regulation for feeding area, lever type screen changer
- Head description: IBC with auto control via 3 ultrasonic sensor for diam measurement. Air ring K Design KARAT with Vario-cool automatic thickness profile control,
- Die diam (mm): 450mm Inserts available for gap 0.8, 1.4 and 2.4 mm
- Thickness control system: K-Design automatic thickness profile control. System upgraded in 2020 with new sensor, HMI
- Bubble cage: motorised adjustments
- Panel for gussets: no
- Take off unit: Rotating
- Corona treatment: Softal 2 side (2 side for tubular or 1 side for each film)
- Web guide: E+L
- Rewinder Type: Double back to back
- Rewinder max reel diameter: 1200
- Rewinder description: can work contact or gap winding
- Additional Information:
- Micro hole device make FBF
- 2 Frigo system air chillers, recently changed
- Width measurement device after take off unit
- …
