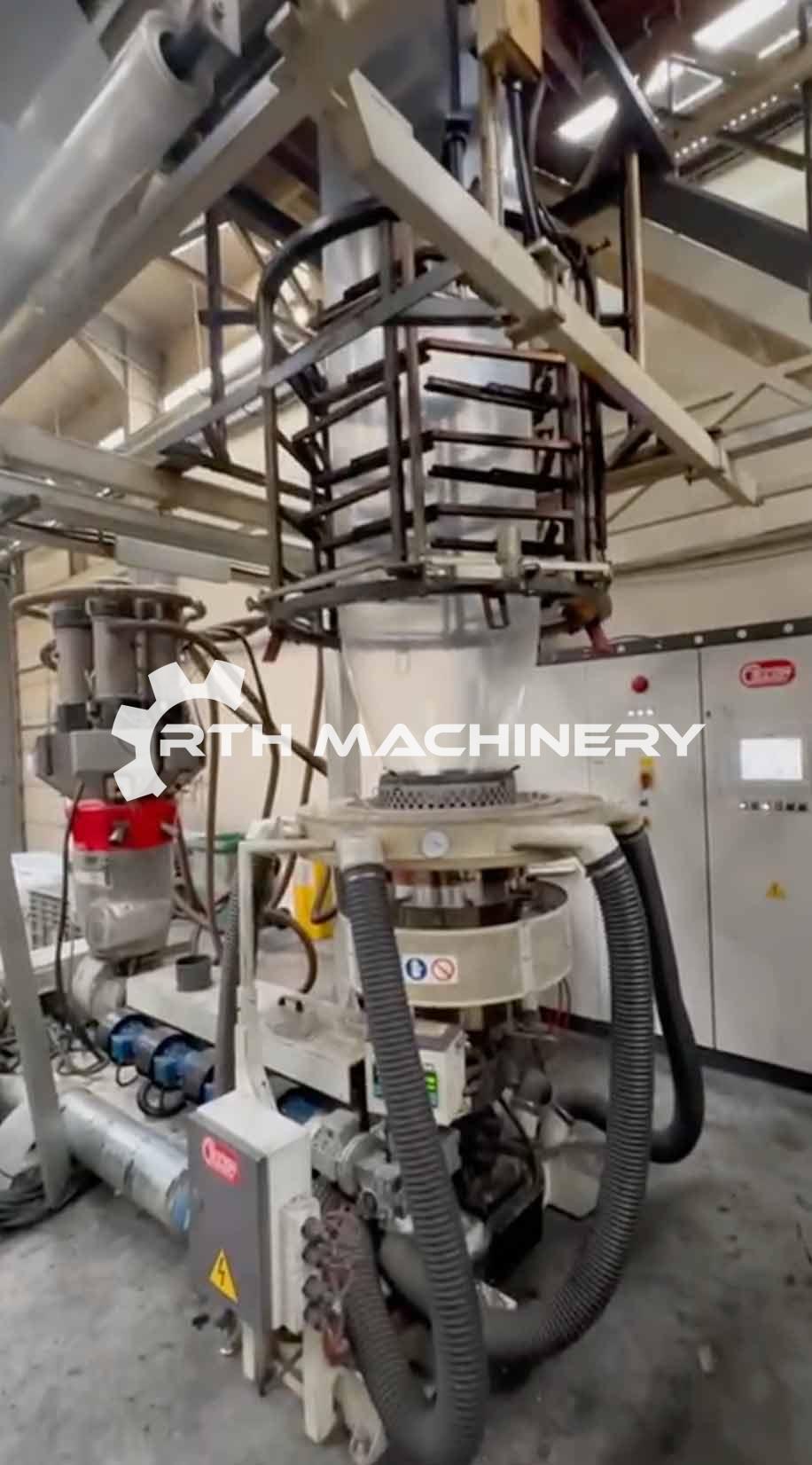

Materials: HDPE, LDPE, LLDPE, mLLDPE, MDPE, BIO, recycled material, 100% or in mixtures, relatively to the die gap and screw profile provided
Width: 1250 mm
Thickness: HDPE from 10 to 80 my, LDPE from 20 to 150 my, BIO from 10 to 100 my (micron)
Speed: 120 m/min
Output: 200 kg/h with die diameter 180 mm
+- 7/18 %with thickness of 60 my according to the workable materials characteristics, blow up ratio and speed line.
Extruder: screw diameter 65 mm, ratio L/D = 30
CARTRIDGE SCREEN-CHANGER type CS3. Filtering surface of 314 cm2
ROTATING GROUP type RG3 for extrusion head type K or KK.
DOUBLE LAYER – DOUBLE FLOW EXTRUSION HEAD type CFKK2 15/30
COOLING RING type KRA35
BUBBLE GUIDE CALIBRATOR FRAME with adjustable height type LC120- 6-L5 CFK-RVQ-H1000+I
FIXED TAKE-OFF UNIT TO2 with rolls 1300 m wide.
BACK-TO-BACK DOUBLE STATION WINDER WITH PNEUMATIC CUT type R7/2 LP-EI-BA-SF with rolls 1300 m wide.
BILATERAL CORONA TREATMENT with pneumatic open for film fitting mod. TCB 10 with treatable wide 1300 mm. Complete of: hood for ozone evacuation – 10 mm wide electrodes with 7 discharges – roller Ø 100
HIGH-FREQUENCY GENERATOR for corona treatment mod. GET 12.5 K3 KVA 3
AIR COOLING BATTERY
COLD-NEEDLE MICROPERFORATING UNIT mod. MF3 with pneumatically controlled opening and rubber or vegetal bristle counter-roller, rolls 1300 mm wide. Micro perforators roller diameter 105 mm – Protection hood to avoid any accidental contact with the needles – distance between the needles: 20 mm. – pitch between the needles: 20mm. – needles diameters: 1.22 or 2.35 mm.
CUT-AND-WELD UNIT mod TS1-A with pneumatically controlled opening, rolls width 1300 mm. complete of: n° 3 welders – automatic film fitting – electric control equipment.
GRAVIMETRIC DOSAGE SYSTEM BATCH BLENDER WITH WEIGHT / METER CONTROL FOR MONO-EXTRUSION LINE with 4 ingredients mod. GRADO ADROIT 404 with throughputs up to 400 kg/h
