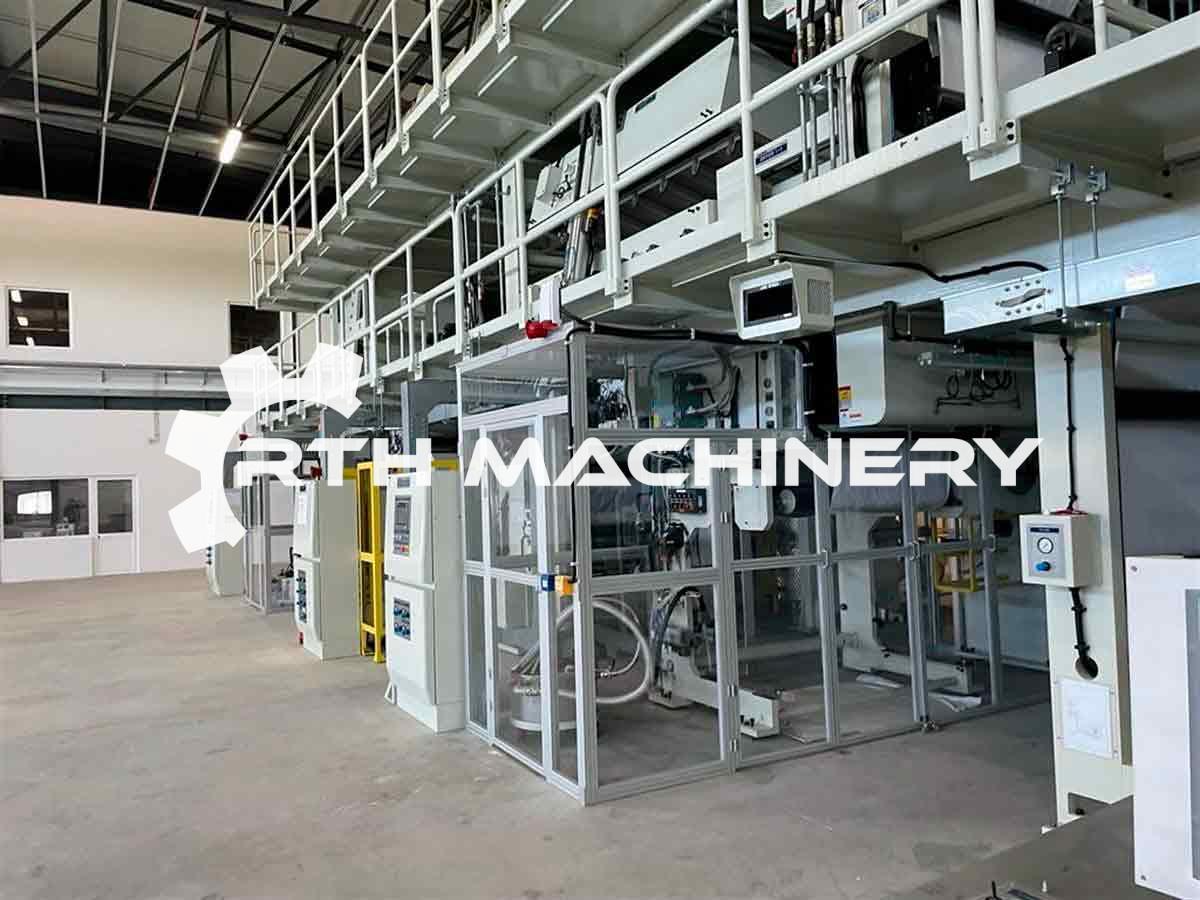

Ref. 25020- Used SAM LAMINATION COATING, year 2017
- Manufacturer: S.A.M.
- Year: 2017
- Application: Lamination + coating
- Type of lamination/coating: SOLVENT / WATER BASED
- Working width (mm): 1250
- Materials: Film, Paper , AL foil from 12 microns
- First unwinder type: Turret automatic
- Max diameter reel unwinder: 1000
- Secondary unwinder type: Turret automatic
- Rewinder type: Turret automatic
- Max diameter reel rewinder: 1000
- Coating unit: Gravure coating unit sleeves type with trolley
- Second Coating unitr: Gravure coating unit with gravure trolley and Semiflexo trolley Trolleys are interchangeable with station 1
- Drying: 1st coating unit – 2 zone drying section – total air inlet 7000 Nmc/h1 vertical dryer 1,8 m Max T°C 120 and following 1 Horizontal Dryer 3 meter – Max T 150 °CTotal installed power 300.000 Kcal /h 2nd coating unit 4 zones Drying section – Total air inlet 18.000 Nmc/h – 1 vertical dryer 3.0 m Max T°C 120 and following 3 horizontal dryers of 3 meters each Max T °C 150 – 200 – 150 Total installed power 800.000 Kcl/h
- Additional Information: Automatic LEL control for driers , Automatic Viscosity control , Chillers , CO2 fire extinguisher complete on the machine , Full ventilation system with thermal oil heat exchangers , Antistatic bars
- …
