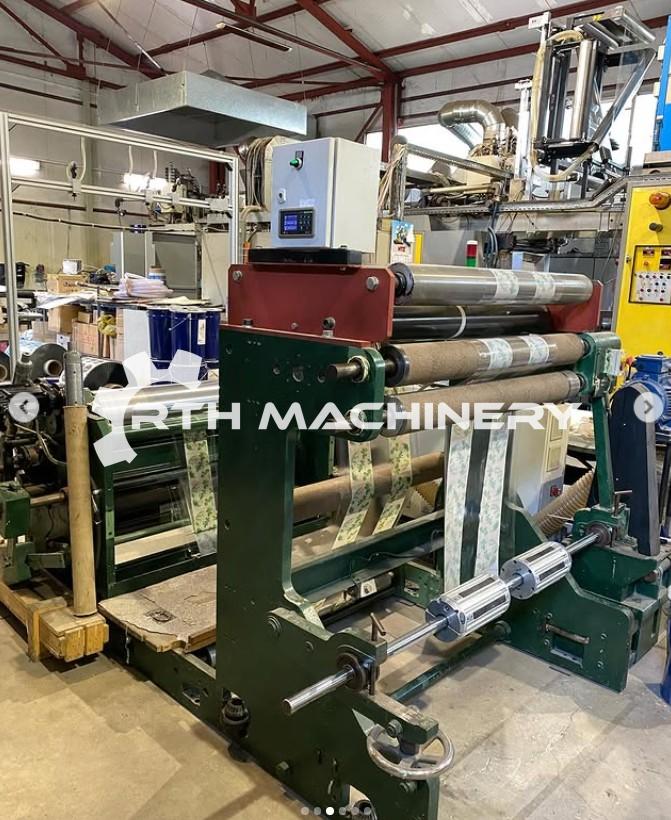

Ref. 2203- USED GOEBEL, YEAR 1978 (FULLY REBUILT IN 2015)
- Manufacturer: GOEBEL
- Year: 1978 (FULLY REBUILT IN 2015)
- Web width: 1050 mm
- Width: 1060 mm
- Max unwinding diameter: 1000mm
- Max rewinding diameter: 500mm
- Draw unit: Servo motor
- Unwinding: Servo motor
- Rewinding: Servo motor
- Rewinding shafts: pneumatic expanding shafts for core 76mm; 3’’
- Unwinding shafts: pneumatic expanding shaft for core 152mm; 6’’ and mechanic chucks for core 76mm; 3’’
- Cutting: razor blades into section shaft
- HMI control unit with touchscreen for controlling of tension, diameter or meters of ready reels, unwinding direction and speed.
- New rebuild in 2015 with servomotors, PLC, HMI. Old system was hydraulic type.
- Web guiding system from RE Spa, reading color and material edge.
- …
