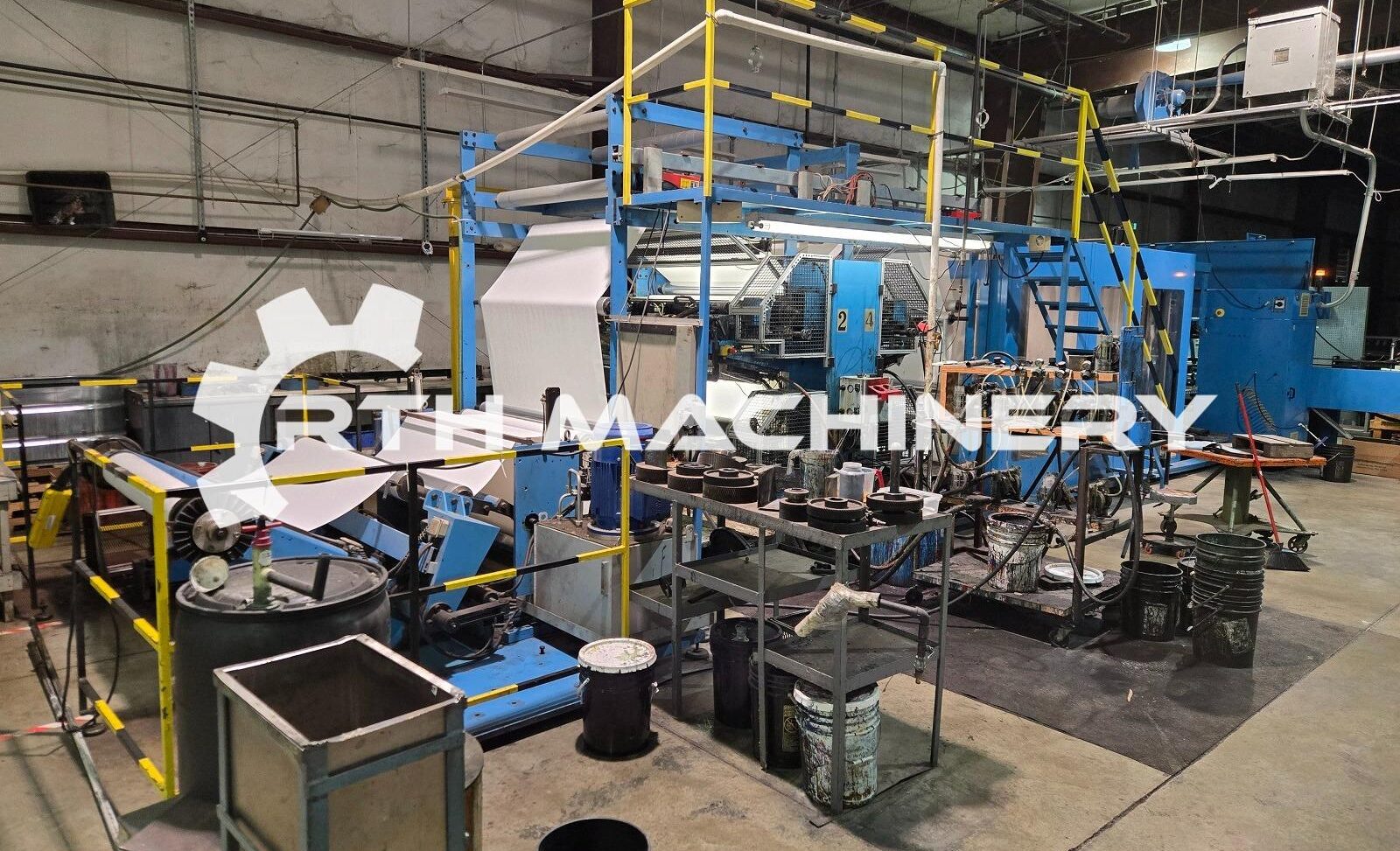

Slitter rewinder with printing machine (4 colors), with accumulator
Reel Width: 1380 mm
Diameter: 1200 mm
(4) anilox rolls included with machine.
(4) inclosed doctor blade ink cavity systems included.
Print repeat: min 315 – max 711 mm
Accumulator design allows for continues printing during finished roll cycle. Capable of metric and standard print repeats. 1/4″ gearing, 6.753″BCD and 7.389″BCD gearing included.
This machine is a highly productive, fully automated slitter rewinder machine for converting materials, primarily designed for customers with high production demands — Key Features and Specifications
Automation: The machine is fully automated, covering core loading and positioning, automatic adjustment and placement of cutting knives, shaft insertion, machine start-up, and automatic extraction of finished rolls.
Production Efficiency: It is engineered for high-volume production, capable of operating speeds up to 500 meters per minute (m/min) 1640 feet per minute.
Material Versatility: It can rewind various self-adhesive materials, including linerless labels and materials for general converting and flexible packaging applications.
Roll Specifications: It produces finished rolls up to 3.94 inches (100 mm) in diameter, accommodating core diameters ranging from 0.57 to 1.26 inches (14.5 mm to 32 mm).
Web Width: The specific model 214/1380 has a web width of 1380 mm (54.3″).
Additional Features: Includes features like a programmable end marker and automatic gluing with a reservoir and gun.
Included is all owners manuals, software, controls, spare parts and pack off table.
