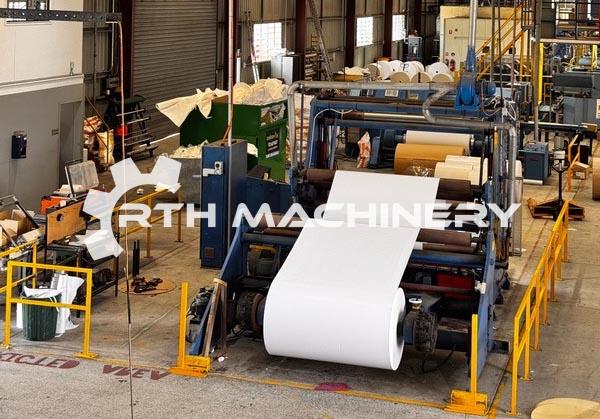

Ref. 2177- USED JENNERJAHN DJJF-54, YEAR 1984
- Manufacturer: JENNERJAHN
- Model: JJS54
- Year: 1984
- Semi Automatic Paper Slitting
- Currently running 57mm x 37mm and primarily handling 12-core rolls.
- However also runs 80mm x 80mm with 17 core rolls.
- Maximum web speed 606 mpm
- Maximum web width 1372mm
- Minimum web width 485mm
- Maximum unwind roll diameter 1,270mm
- Maximum roll weight 1362kgs
- Maximum rewind roll diameter 305mm
- Maximum rewind core O/D 76.2mm
- Minimum rewind core O/D 12.7mm
- Hand loaded shaft
- Roll core pounder unit
- Automatic core transfer to bed rollers
- Automatic tail cutter
- Automatic gluing for end of roll sealing
- Automatic roll transfer to eject conveyor
- Hand unloading of completed Rolls
- Shaft driven unwind stand
- Tension control unit
- Semi automatic male knife insertion
- Automatic core positioning system
- P&S RPL uni
- Machine currently set up for 500mm x 50m kraft Rolls
- Purpose built roll packaging station with auto conveyor systems
- …
