Ref. 2176- USED JENNERJAHN DJJF-33, YEAR 2004
- Manufacturer: JENNERJAHN
- Model: DJJF-33
- Year: 2004
- Fully Automatic Twin Paper Slitting Machines, currently running thermal 80mm x 80mm and primarily handling 12-core and 17-core roll
- Maximum web speed 1-Ply 600mpm (2000fpm)
- Maximum web width 840mm (33.07 inches)
- Minimum web width 485mm (19.09 inches)
- Maximum unwind roll diameter 1270mm (50 inches)
- Maximum unwind roll weight 908kgs (2000lbs)
- Maximum rewind roll diameter 305mm (12 inches)
- Maximum rewind core outer diameter 32mm (1.25 inches)
- Minimum rewind core O/D 16mm (0.63 inches)
- Automatic core transfer to bed rollers
- Automatic tail cutter
- Automatic gluing for end of roll sealing
- Automatic roll transfer to eject conveyor
- Shaftless unwind stand
- Tension control unit
- Automatic male knife insertion
- Automatic core positioning system
- P&S RPL unit
- Purpose built roll packaging station with auto conveyor systems
- Roll core pounder unit

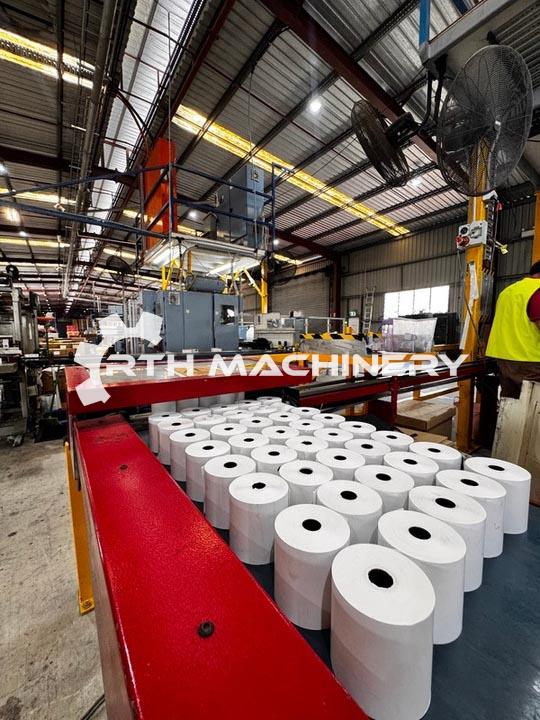

- Machine currently set up for 80mm x 80mm rolls
- …
