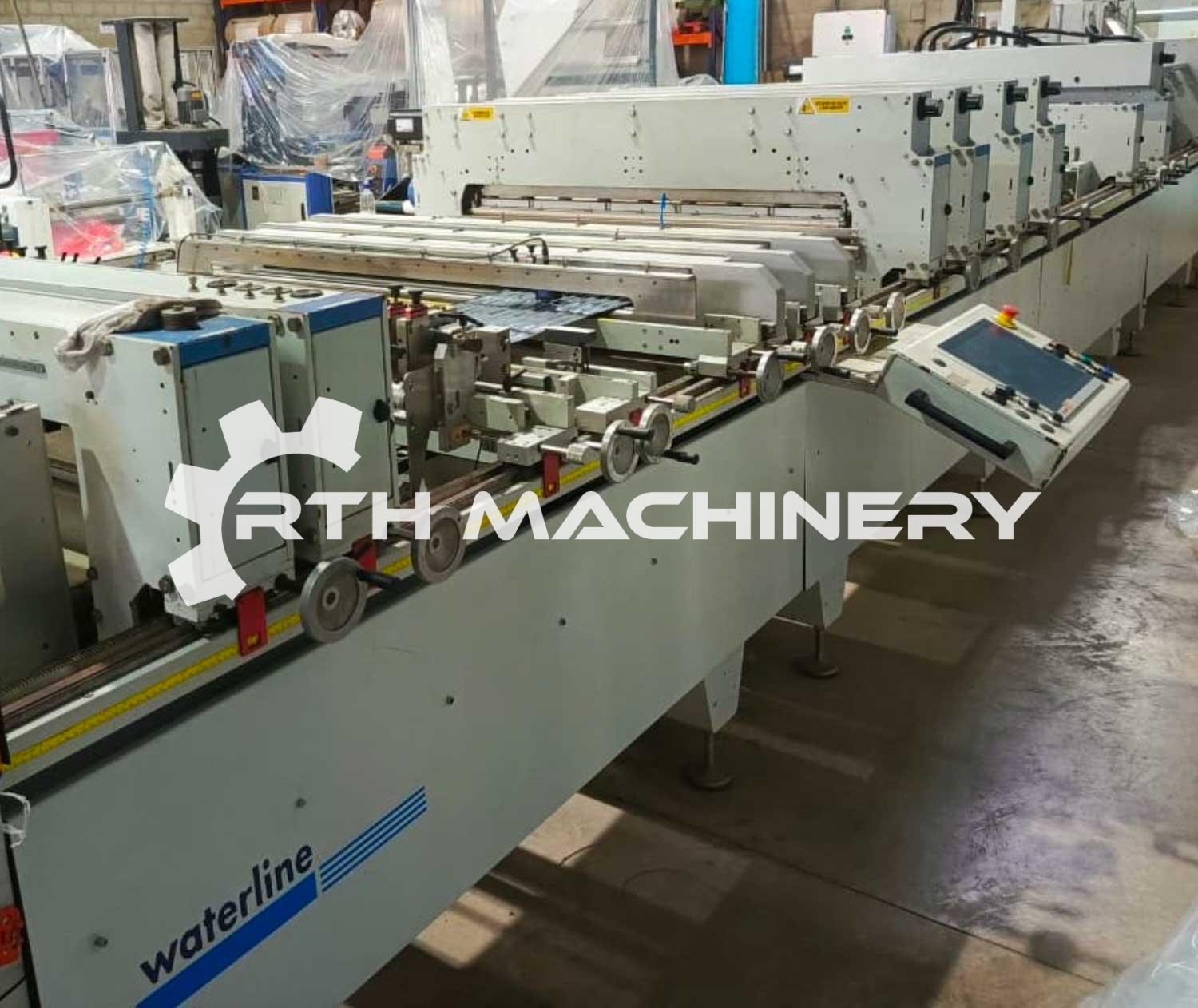

Ref. 21060- USED WATERLINE RITEBAG 2.0 1200 I Z, YEAR 2017
- Manufacturer: WATERLINE
- Model: RITEBAG 2.0 1200 I Z
- Year: 2017
- Type of bags: Doypack, 3 side weld
- Film: PA, PET, AL laminated with PE or PP
- Film thickness: 40µ – 250µ
- Max. roll width: 2 x 1250mm
- Max. diameter reel: 1000mm
- Shaft diameter: 76mm (3″) and 152mm (6″)
- Production capacity: 200 cycles/min (mechanical speed) – Speed and production capacity
- depend on the material, thickness, and bag size and shape
- Control system: Beckhoff industrial PC with VGA touchscreen
- Electrical connections: 3N ~400V, 50/60 Hz ~55 KW2
- Air consumption: 300 NL/min, 6 bar
- CE standards
- Unwinding section
- Folding section
- Rear feed station + Film synchronization float
- Photocell station
- Central feed station + Film compensating rocker arm
- Longitudinal sealing station + Cooling
- Zip station
- Film stretcher + Film centering station
- Central feed + Film tensioning rocker arm
- Cross-sealing station
- Cross-cooling station
- Handle punching station
- Punching stations
- Longitudinal cutting station
- Punching station
- Front feed station
- Cross-cutting station
- Control panel
- Conveyor table
- …
