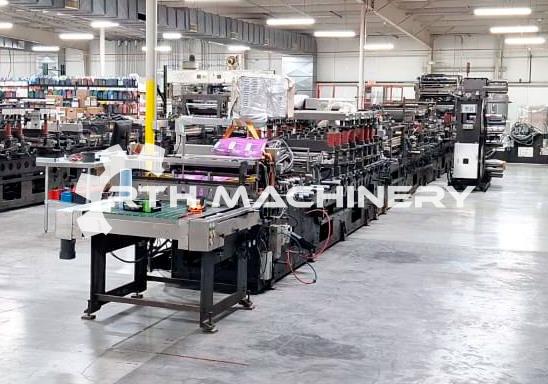

Ref. 21056- USED ZHOUTAI GSD650FSL-M, YEAR 2018
- Manufacturer: ZHOUTAI
- Model: GSD650FSL-M
- Year: 2018
- Quad-Seal Flat Bottom Pouch Making Machine
- Machine Type: Quad Seal, Flat Bottom Pouch Machine
- Material Type: Laminated Film As; LDPE, CPP, MCPP, AL, NYLON, PP etc
- Thickness of the Material: 70~230um
- Web Max Size: Body Film: Max 1300mm; Side Gusset: Max 400mm
- Max Diameter of the Roll: Max: φ800mm
- Core Diameter: 3» (inch)
- Height of Max Pouch: Max 650mm-L, Minimum 180mm
- Conditions:
- 1- up FB Pouch Max 600mm-L (Bottom folded)
- 1- up FB Pouch Max 650mm-L (Bottom Registered Inserted)
- 2- up FB Pouch Max 275mm-L (Bottom folded)
- 2- up FB Pouch Max 300mm-L (Bottom Registered Inserted)
- (Included Zipper and Non-Zipper)
- Length of Max Pouch: Max 420mm, Minimum 100mm (No Skip Function)
- Maximum and Minimum Size for bottom Gusset: Max=150mm, Min=50mm
- Performed Bag Size:
- Width of Max Height of Pouch: Max 650mm-L
- Width of Max Pouch with Quadruple Output: 100mm-180mm
- Width of Max Pouch with Triple Output: 100mm-200mm
- Width of Max Pouch with Double Output: 100mm-300mm
- Width of Max Pouch with Single Output: 160mm-650mm
- Width of Max Width of Pouch: Max 420mm-L
- Width of Max Pouch: Min 150mm-L; Max 420mm-L
- Accuracy of Eye Mark: ≤±1.5mm
- Machine Speed: Max Mechanical Speed:
- – Flat-bottom Pouch: 35~100 Cuts/min
- – Material Speed: 45 Meters/min
- Sealing Method: Mechanical Press Seal (spring)
- Main Power: 380V AC 50Hz; 3 Phases
- 60A at Running Mode, 100A at Starting Mode
- …
