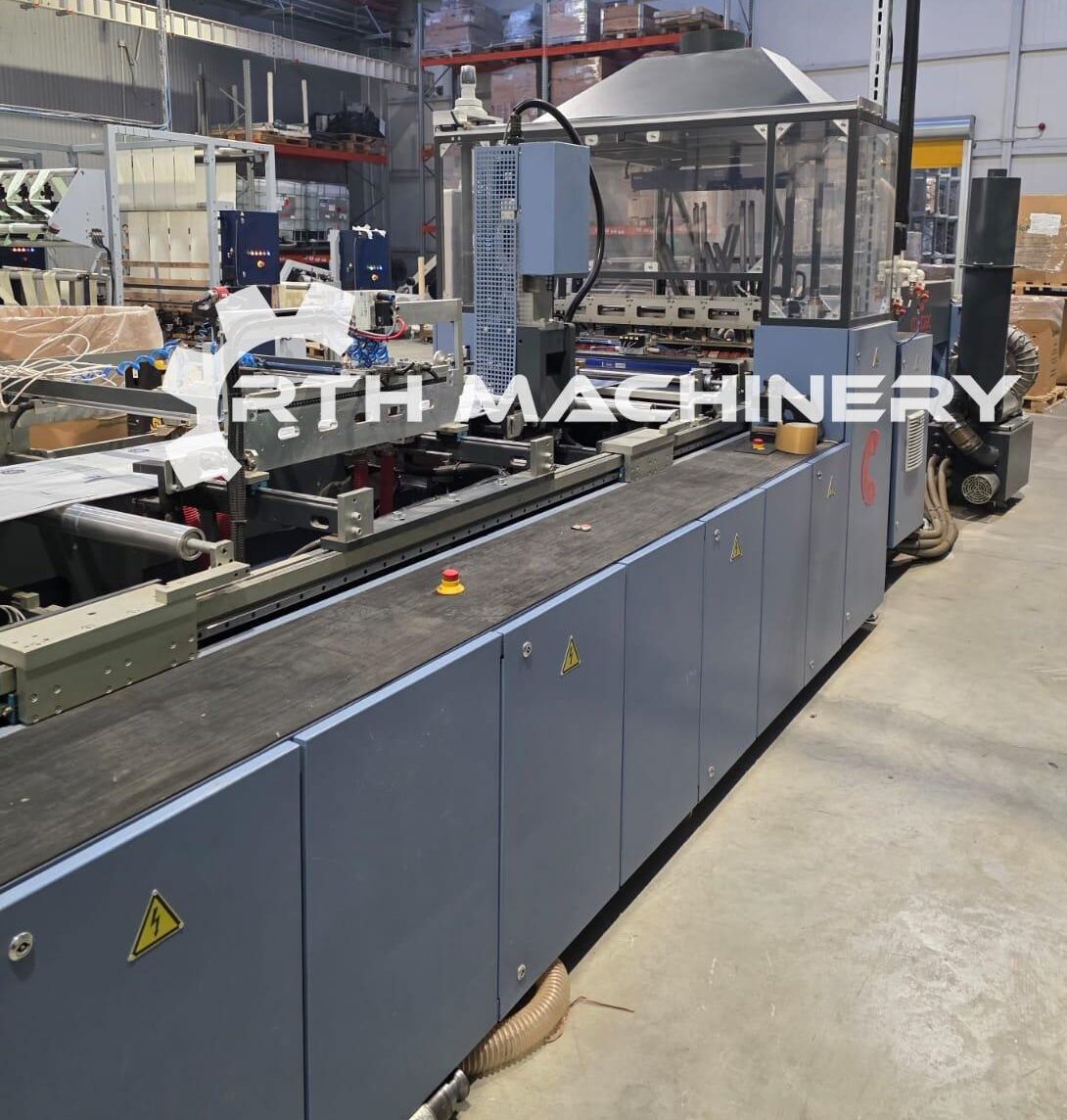

Ref. 20033- USED CONTEC C-GO 850 BK, YEAR 2023
- Manufacturer: CONTEC
- Model: C-GO 850 BK
- Year: 2023
- Full Automatic Wicket System Courier Bag Making Machine
- Working width: 830 mm
- Bag width: 150 – 640 mm
- Bag length: 250 – 830 mm
- Mechanical speed: 400 cycles/min
- Max film speed: 100 m/min
- Material: PE
- Thickness: 0,030 mm – 0,070 mm LDPE, 0,030 mm – 0,080 mm HDPE, Pouch film; 0,022 mm – 0,040 mm LDPE (min.%30 LLDPE)
- Undwinder (main film) 1 AT-Q 1600 / 800 -Shaftless: Max width 1600 mm, Max diameter 800 mm
- Undwinder (pouch film) 1x AT 400/600 – Z: Max width 400 mm, max diameter 600 mm
- 1x Center Guide System with 2X servo motor controlled
- 1x PU 400 Pouch Unit
- 1x LS-H / IK 1600.2 Longitudinal Sealing Unit with Hot Air
- 1x FD 1600 Folding station
- 2x LP-K Longitudinal Perforation Unit for flap area
- 1x LS – H / Z 850.1 Longitudinal Sealing Unit with Hot Air
- 1x BF.1 Bottom gusseting unit, 1-track
- 1x LP-K Longitudinal Perforation Unit for Blocking Area
- 1x Continuous Dancer System
- 1x Continuous Draw Rollers
- 2x BAZ Unwind Units with feed-in system for covering stripes (siliconized PE-PET-PP or ADH)
- 1x HOT-MELT Unit (Robatech)
- 1x 2nd VWP 850 – Servo Additional pair of draw rollers
- 1x HHS 850.1 – Servo Handle hole sealing unit for 90×20 mm
- 1x GS 850 Servo K Handle hole punching unit with edge guide system
- 1x GS 850 Servo K Triangle hole punching unit with edge guide system
- 1x ZL-SE 850 – Two-Hole-Punching Unit, servo driven
- 1x SSE-S Safety Slitting Unit
- 2x Pneumatic Driven Punching Holes
- 1x 1st VWP 850 Servo
- 1x C – GO 850
- 1x TS – W 850 Side Sealing Unit
- 1x ST – SH 650 / 420
- bag wicket stacking unit
- bag height min. 250 mm – max. 830 mm
- bag width: min. 150 mm – max. 640 mm
- …
