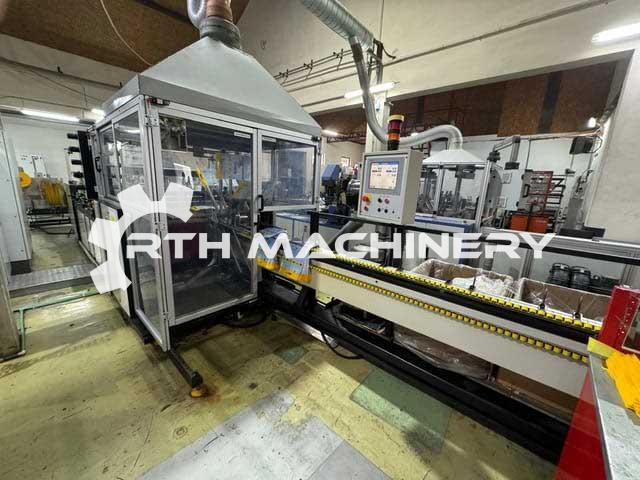

Ref. 20031- USED SCAE DIMATIC SILVER 471/1100, YEAR 2012
- Manufacturer: SCAE
- Model: Dimatic Silver 471/1100
- Year: 2012
- Type of sealing/bags: Side weld
- Type of delivery: Wicketer
- Type of bags: Wicketers
- Working width (mm): 1500
- Bag length: max.620
- Additional Information:
- Double motorized unwinder 1500 mm wide
- • Nr. 2 Pneumatic dancer
- • Nr. 2 Edge guide with ultrasonic sensor
- • Nr. 2 Air shaft 3″
- Folding Triangle 1600/800 mm
- • Bottom gusset max gusset deep 80 mm
- Motorized unwinder for the handle reinforce
- • Handle to be placed inside the folded bag (W5) or external (W6)
- • Hot air longitudinal sealing
- • Nip roller/pneumatic dancer and Auxiliary servo draw roller section
- • Nr. 2 ventilation holes with Y and half moon punch
- • Pneumatic handle hole punch with teeth cut for handle 90×20 mm with scrap removal
- • Scrap removal ventilator with plastic bag to collect the scraps
- • Pneumatic easy open punch with two shape of punching: 240×100 mm R55 and 265×90 mm R55 (and other size and form available on request but not supplied with the machine and can be sold apart) + hole of 20 mm diameter for easy opening
- • Wicket hole punch diameter 15 mm and slit cut for anti-shock with ultrasonic edge guide
- • Side seal bar radius 1,2
- • Side seal radius 90°
- • Silicon roller for side seal contrast
- • Servo driven Wicket stacking chain
- …
