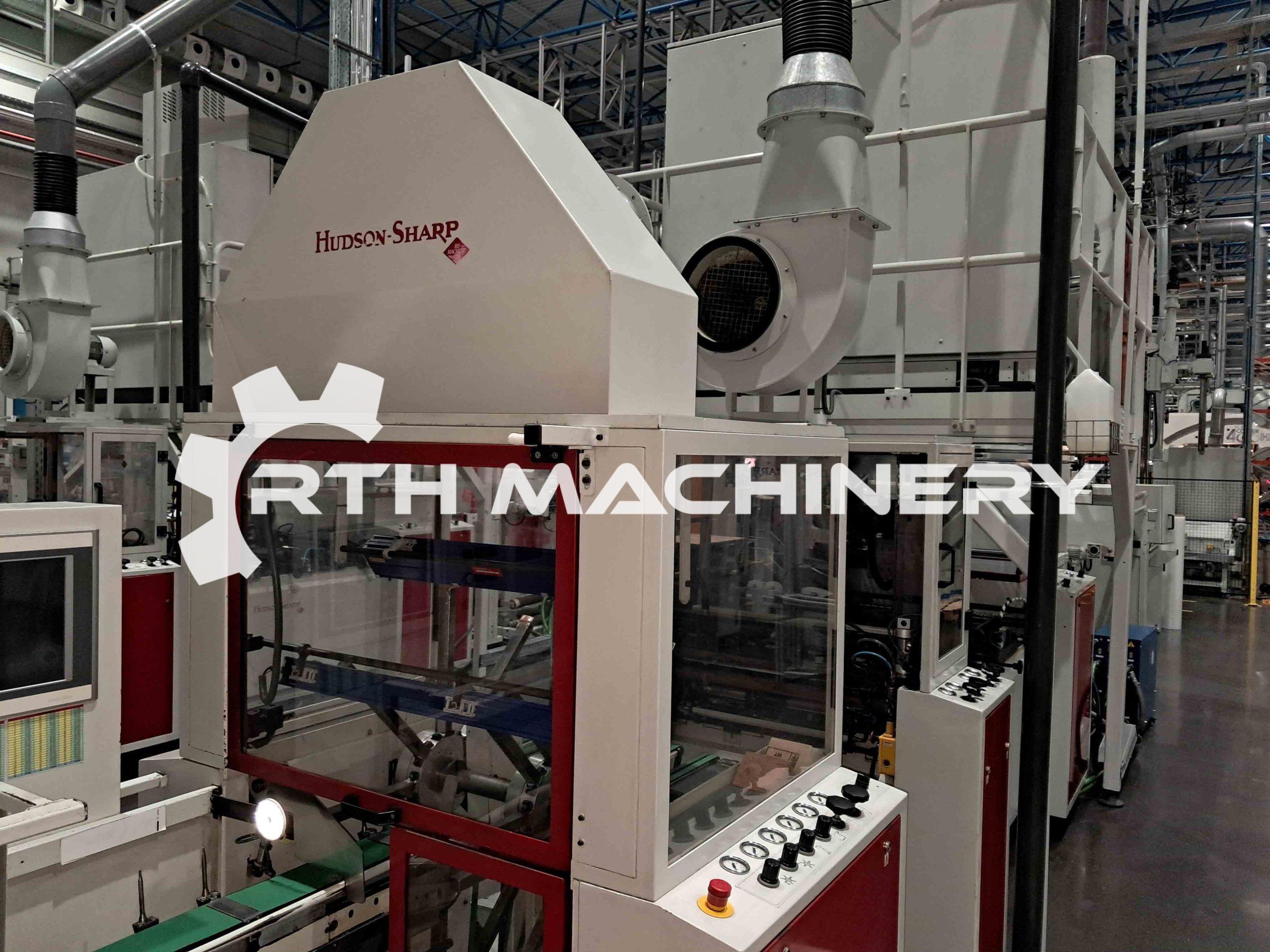

Ref. 20026- USED HUDSON SHARP 5750W 390-H, YEAR 2006
- Manufacturer: HUDSON SHARP
- Model: 5750W 390-H
- Year: 2006
- Wicket machine
- Seven axis servo driven
- Max draw length: 390 mm
- Left hand configuration
- Draw length (bag width): 110 – 390 mm
- Seal width (bag length): 240 – 610 mm
- SHAFTLESS UNWIND:
- – Electric powered and braked, VFAC surface driven
- – Unwind speed determined by position of compensator
- – Film tension can be adjusted between 0 and 1 Newton/Meter/Micron
- – Selection of the unwind direction via touch screen
- – Pneumatic reel lifting
- – Folding triangle on top
- – Motorised opening and closing of lifting arms
- – With ultrasonic BST centre guide
- – Light running bearings
- – End of reel and film break detection
- – For core dia of 76 and 152 mm
- Capacity : min. roll width: 400 mm
- max. roll width: 1.370 mm
- max. roll dia: 1.000 mm
- max. weight: 950 kg
- max. speed: 120 m/min
- SERVO DRIVEN CHEVRON SEAL DEVICE
- – seal time adjustable in milliseconds
- – upper and lower temperature adjustable
- …
