Ref. 19099- USED GUR-IS PSR-1100, YEAR 2021
- Manufacturer: GUR-I
- Model: PSR-1100
- Year: 2021
- The PSR-1100 machine is designed to produce perforated bags on a roll.
- Max. film width: 1100 mm
- Max. winding width: 1100 mm
- Max. roll diameter on the unwinder: 900 mm
- Max. Roll diameter on the rewinder: 400 mm
- Inner diameter of the core: 76.2 mm
- Bag length: 150–2500 mm
- Total film thickness: 0.020–0.300 mm
- Max. line speed: 100 m/min
- Max. production speed: up to 150 pcs/min
- Winding type: on a core with a diameter of 76.2 mm
- Materials: HDPE, LDPE, as well as recycled materials.
- Functionality: supports rewinding from a jabo roller to a spindle with a specified meterage for accurate winding.

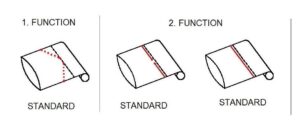

- Production of perforated bags on a roll with a large core and a bottom seam.
- Production of laundry bags (angled).
- Possibility of a double seam on the bottom side of the bag.
- Speed and precision: high productivity thanks to the servo motor, servo driver and special program.
- Control flexibility: work both with and without a photo sensor.
- Easy of adjustment: bag length and production speed are changed via the operator touch panel.
- Material management: equipped with an edge guidance system at the rewinding and unwinding stations.
- Easy of operation: hydraulic roll lifting system with an upper unwinding motor.
- …
