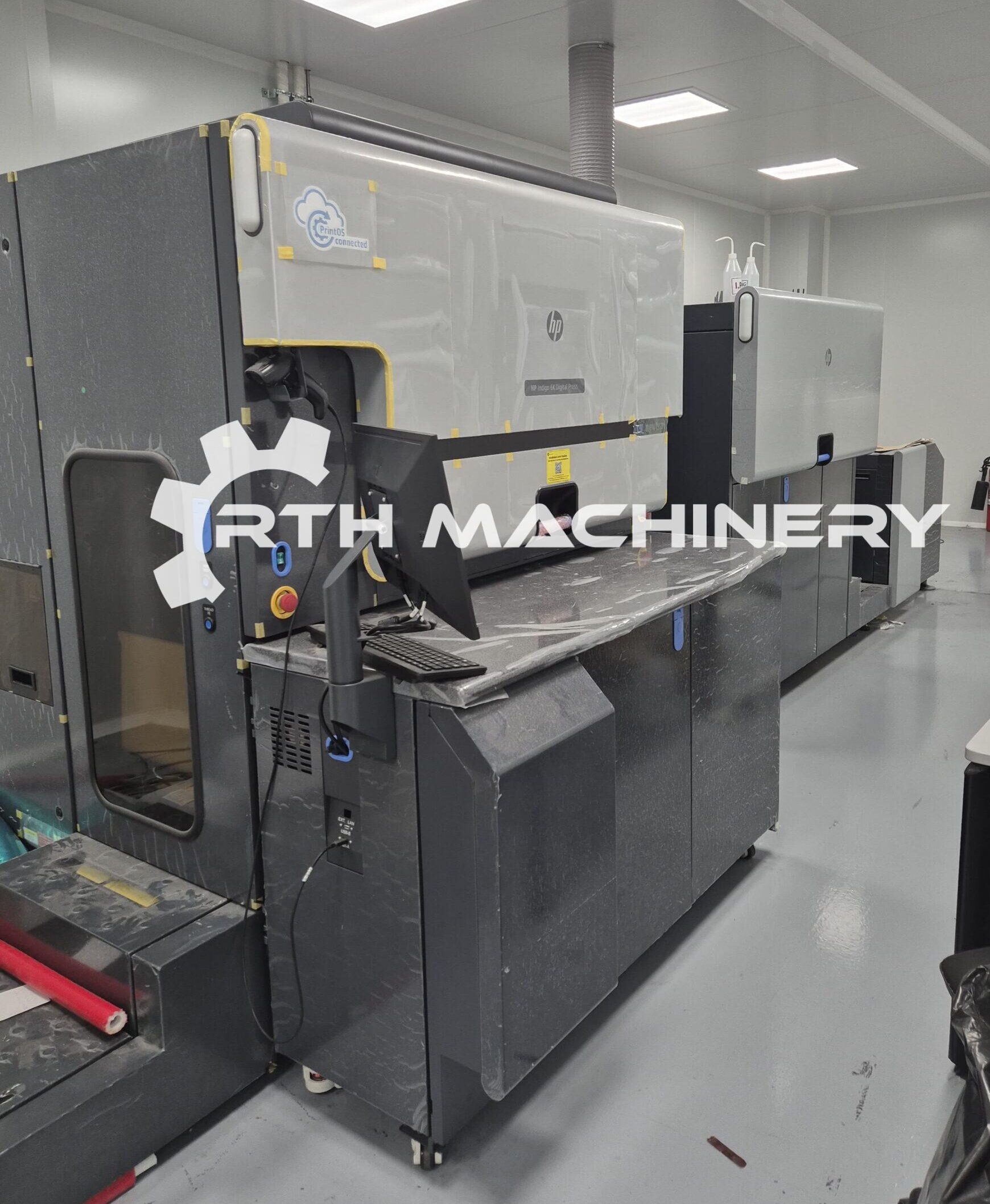

Up to 40 m/min (130 ft/min) in enhanced productivity mode
Up to 60 m/min (196 ft/min) in 1- or 2-color mode
Image resolution: 812 dpi at 8 bits; Addressing capability: 2438 x 2438 dpi in HDI (high-definition images)
Lineature: 175, 180, 196, 210 lpi
Image size: 320 x 980 mm (12.59 x 38.58 inches) maximum
Substrate thickness: 12 to 450 microns (0.5 to 18 points)
Substrate type: Pressure-sensitive label stock, paper, film, and cardboard
Roll width: Maximum width: 340 mm (13.39 inches) / Minimum width: 200 mm (7.87 inches)
Unwinder:
Maximum input roll diameter: 1000 mm (39.37 inches)
Core inner diameter:
Standard: 76.2 mm (3 inches)
Maximum roll weight: 270 kg (595 lb)
Rewinder: 700 mm (27.56 inches) max. roll diameter
Print server: HP Production Pro for Labels and Packaging
Cloud connectivity: Via HP PrintOS
HP Indigo ElectroInk inks:
Standard 4-color printing: Cyan, magenta, yellow, black
Additional process inks:
Standard white, premium white, premium white for sleeves, fade-resistant yellow, fade-resistant magenta, fade-resistant orange, fluorescent pink, HP Indigo Invisible ElectroInks (yellow/blue), HP Indigo ElectroInk Silver
HP IndiChrome 6-color printing: Cyan, magenta, yellow, black, orange, and violet
HP IndiChrome Plus 7-color printing: Cyan, magenta, yellow, black, orange, violet, and green
HP IndiChrome Off-Press Direct Inks:
HP IndiChrome Ink Mixing System (IMS) for creating spot colors using CMYK, plus orange, violet, green, reflex blue, rhodamine red, intense yellow, and transparent
PANTONE® Colors: Compatible with PANTONE PLUS®, PANTONE MATCHING SYSTEM® and PANTONE GoeTM
HP Professional PANTONE emulation technology with CMYK on press; HP IndiChrome on press; HP IndiChrome Plus on press;
HP IndiChrome off press (IMS) to achieve up to 97% of the PANTONE® color gamut
