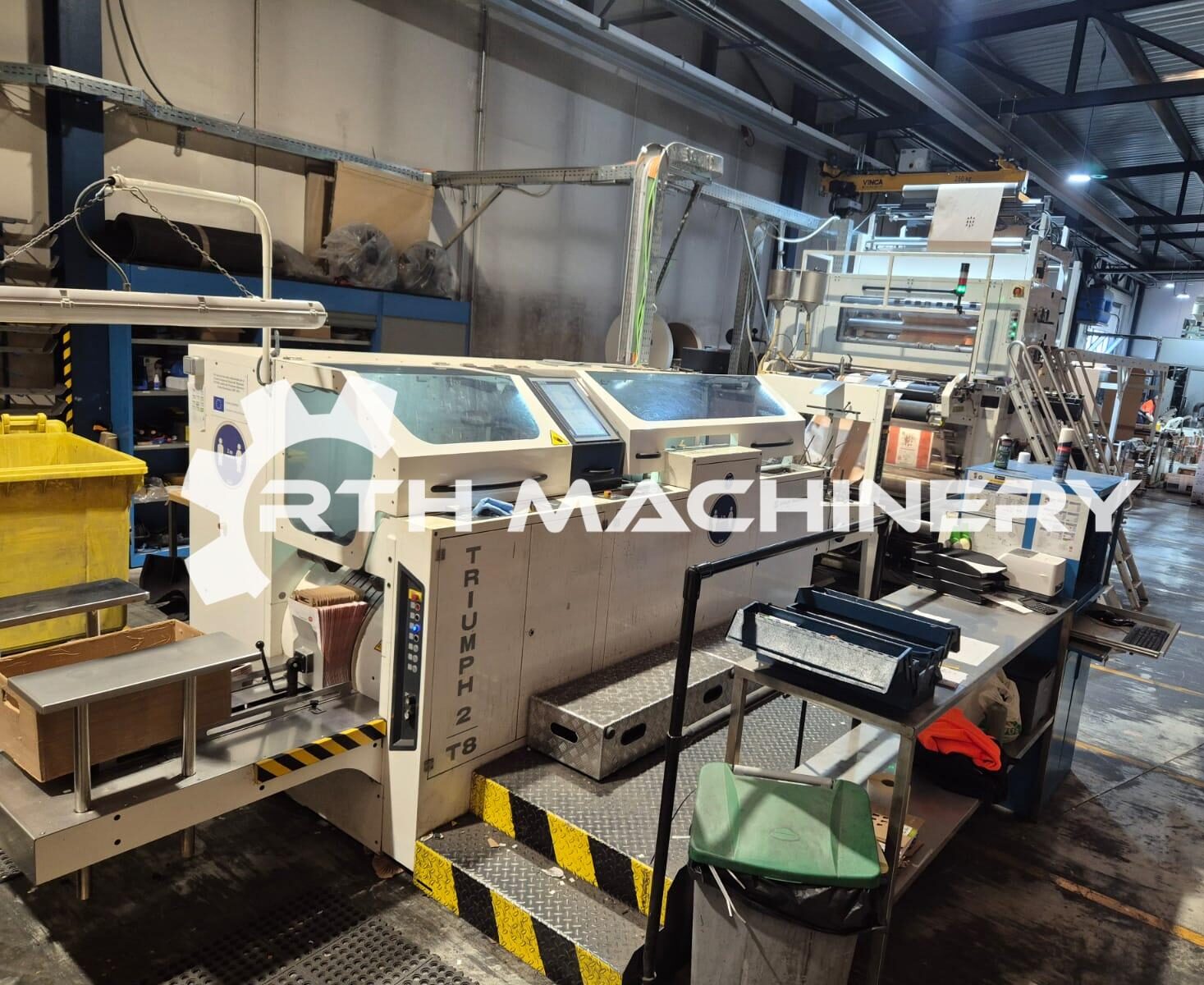

Ref. 1076- USED GARANT TRIUMPH 2-T8 SM SERVO, YEAR 2017
- Manufacturer: GARANT
- Model: TRIUMPH 2-T8 SM SERVO
- Year: 2017
- Handle:
- Reel width (handle strip): (3 layers): 45 mm, (5 layers): 80 mm
- Reel diameter: 1000 mm
- Core diameter (inner): 76 mm
- Paper type (basis weight): approx. 100–150 g/m²
- Plastic type (plastic handle): 0.220 mm
- (material mix: LD-PE with 20% HD-PE)
- Handle inner width: 90 mm
- Strip width: 18 mm
- Handle strip length (variable in whole cm): 35–50 cm
- Reinforcement sheet:
- Paper reel width = sheet width: 180 mm
- Paper reel diameter: 1000 mm
- Sheet length: 70 mm
- Core diameter (inner): 76 mm
- Paper type (basis weight): approx. 80–120 g/m²
- Required format parts:
- 1 change wheel per handle strip length
- Product:
- Square bottom bag
- Material: Kraft paper: 50–130 g/m²
- Format range:
- Bag width: 80–280 mm
- Shopping bag width: 180–280 mm
- Bottom width: 50–160 mm
- Cut length:
- For bags: 250–550 mm
- For shopping bags (excluding handle): min. 270 mm
- For shopping bags (including handle): min. 550 mm
- Minimum distance between handles and open web must be at least 250 mm
- Unwinding:
- Max. paper width: 900 mm
- Max. paper roll diameter: 1300 mm
- Core diameter: 76 mm
- Energy requirements:
- Electrical connection: 230/400 V, 50/60 Hz
- Electrical power: approx. 87 kVA
- Compressed air consumption: approx. 50 Nl/min
- Air pressure: 6–8 bar
- …
