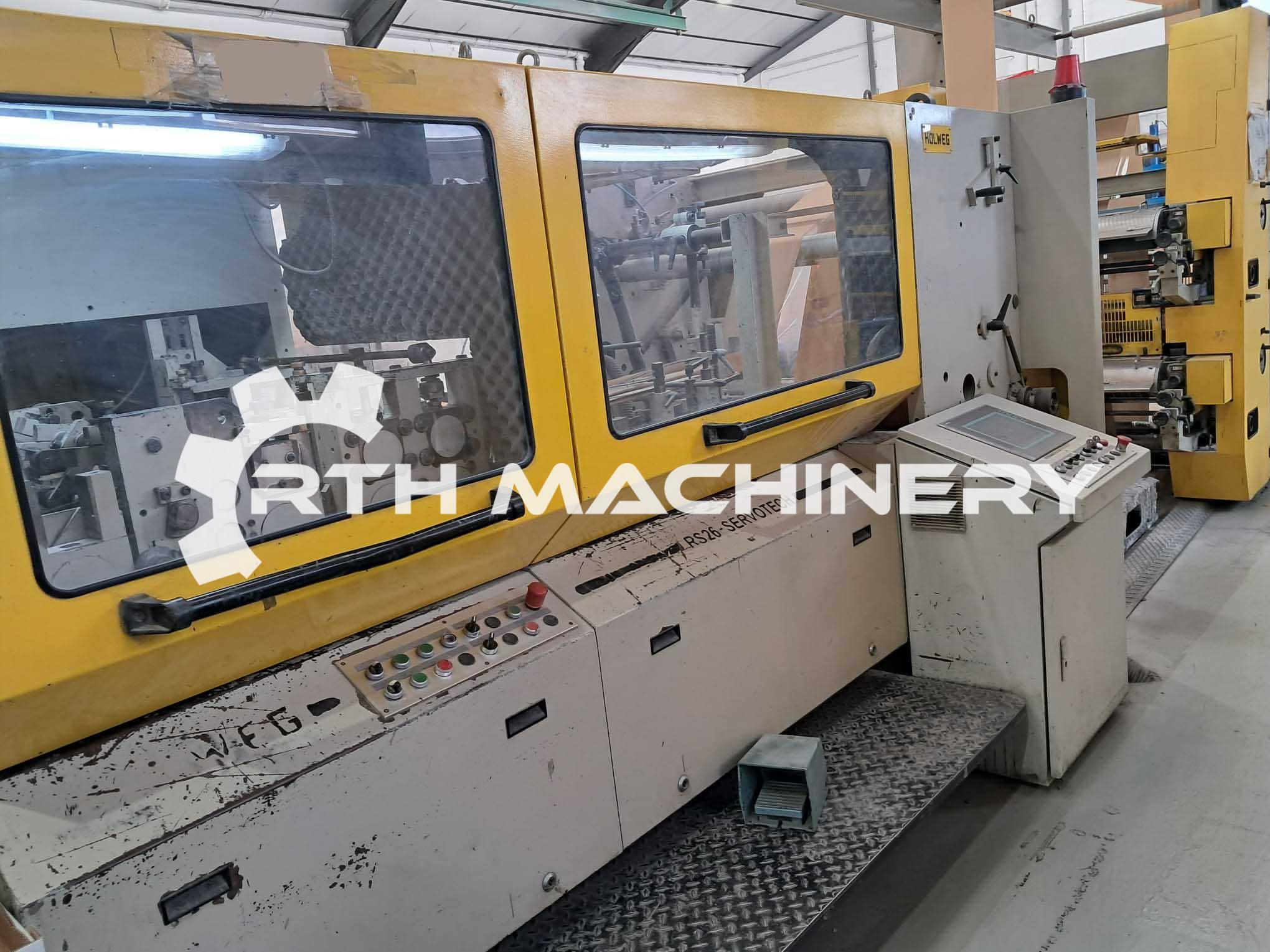

Ref. 1069- USED HOLWEG RS-26 SERVOTECH, YEAR 2007
- Manufacturer: HOLWEG
- Model: RS-26 Servotech
- Year: 2007
- Undwinder type: DHS, width 1100 mm
- Max reel diameter: 1270 mm
- Bags Type: flat, with gussets, with window
- Thickness: 25 g/m up to 80 g/m (is possible to work with 125 g/m depending on the paper quality)
- Cut off length with 4 tweezers: min 160 mm – max 400 mm
- Cut off length with 2 tweezers: min 410 mm – max 760 mm
- Bag width: min 70 mm – max 380 mm
- Gussets: min 12 mm – max 80 mm
- Standard tab: 13,3 mm or 18,3 mm
- Maximum width of the paper web 1020 mm
- Speed for the production of flat and gusset bags: with 4 tweezers ( from 500 bags/min up to 1000 bags/min), with 2 tweezers 450 bags/min
- System for adding a window of PP material, Max diameter of Reel PP material: 800 mm, Speed with 4 tweezers: 600 bags/min, Speed with 2 tweezers: 300 bags/min, Max paper speed: 180 m/min
- Hotmelt system
- Printing machine in line: Type IF-526, 4 colors (structure prepared for 6 colors), width 1100 mm, sleeves
- Print repeat: min 290 mm – max 860 mm
- Printing speed: 300 m/min
- …
