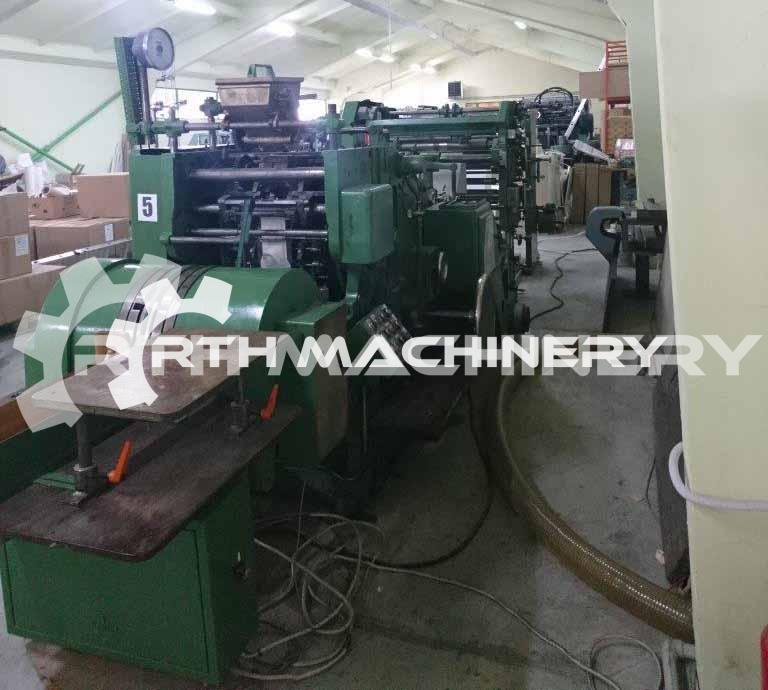

Ref. 1050- USED WINDMOLLER & HOLSCHER / GARANT MATADOR SType DC 1695, YEAR 1990
Manufacturer: WINDMOLLER & HOLSCHER / GARANT
Model: MATADOR SType DC 1695
Year: 1990 (full revision by Garant in 1990 – Original building year 1965)
Type: Flat and satchel bagmaking machine including inline printing unit
Type of bags: Flat and satchel bags
Type of cut: Perforation
Mechanical speed: 1200 bags/minute
Min./Max. bag width: 50 – 260 mm
Min./Max. bag length: 150 – 560 mm
Flap for bottom forming: 20 – 30 mm
Max depth of gusset for maximum bag width: 2 x 45 mm
Max. material width: 720 mm
Max diameter width: 1000 mm *( but only 800mm because of inline printer)
Number of form plates: 3 (sizes 92, 115 and 148mm, all for satchel bags) Please note the form plates in lots 29 and 30 can also be used on this machine
Number of gears: 6 (2×45, 2×50 and 2×56)
PRINTING UNIT
Model: Alina X QMS 992
Year: 1990 (full revision by Garant in 1990 – Original building year 1956)
Number of colours: 4
Web width: 650 mm
Min 7 Max repeat: 230 – 800 mm
Speed: 150 m/min
Max diameter unwind: 800 mm
Including: Continious running at machine stop
Anilox: 4 (120 l/сm-8,0 cm3/m2)
Number of cylinders: 3(280) Please note the cylinders in lots 33, 34, 35, 36 and 37 can also be used on this machine
