Ref. 10051- COMEXI ACOM RG EXCEL, YEAR 2016

Ref. 10051- COMEXI ACOM RG EXCEL, YEAR 2016

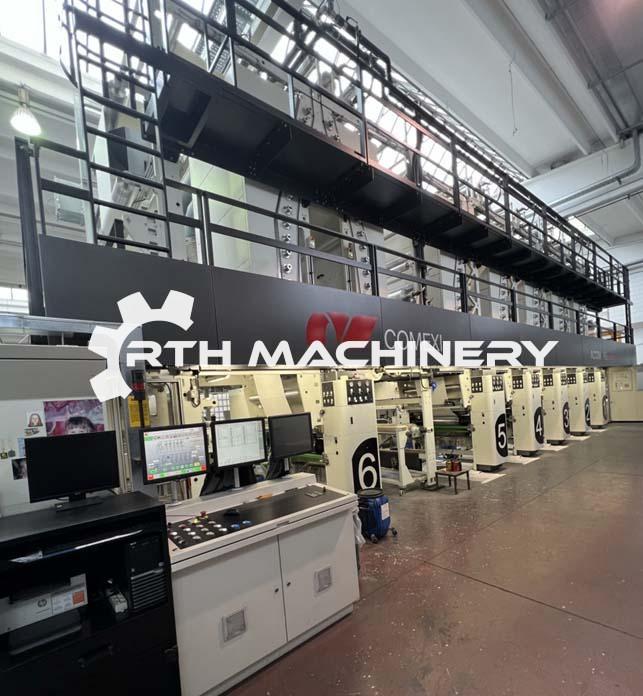

Ref. 10051- Used COMEXI ACOM RG EXCEL, year 2016

  • Manufacturer: COMEXI ACOM
  • Model: RG Excel
  • Year: 2016
  • Number of colors: 6
  • Print possibilities: 6+0 , 5+1
  • Drive: Electronic shaft
  • Trolley system: Yes
  • Web width (mm): 1150
  • Print width (mm): 1100
  • Print repeat range (mm): 530 – 950
  • Drying specifications: Units 1- 5 : single drying hood 3,5 mt length ,1 blowing fan, 1 gas burner , 2 chill rollers- Unit 6 Double drying hood 2x 3, 5 mt length, 2 gas burners, 3 chill rollers .- Each unit with independent air recirculation system
  • Drying heat surce: gas burners
  • Unwinder type: Turret automatic
  • Max reel diameter unwinder (mm): 1200
  • Rewinder type: Turret automatic
  • Max reel diameter rewinder (mm): 1200
  • Register controll: Eltromat Registar 20
  • Additional Information: Materials BOPP 15- 50 microns , PET 12 – 40 microns, Paper 40 – 120 gsm – Only water based inks Infeed driven nip section Outfeed driven nip section Web guides in and out Lay on pressur rollers sleeve based 165 mm diam
