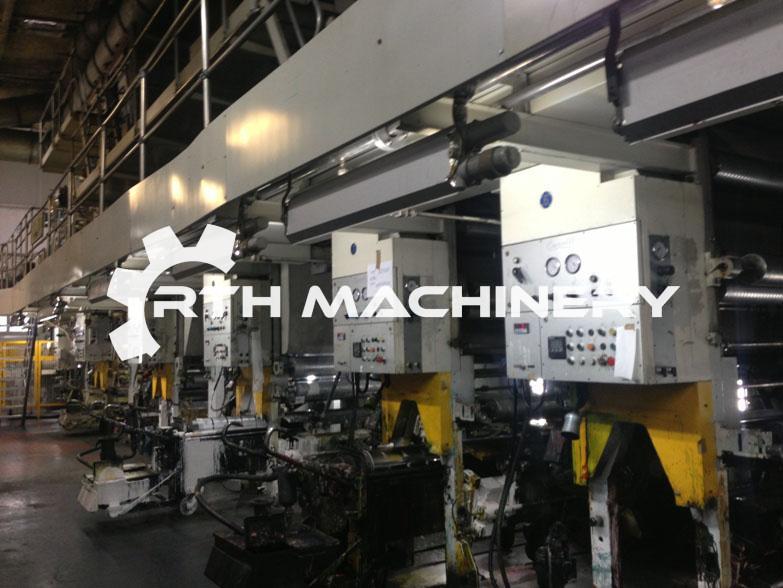

Ref. 10023- CERUTTI 960, year 1996
- Manufacturer: CERUTTI
- Model: 960
- Year: 1996
- Number of colors: 10
- Print possibilities: 9+0, 8+1, 9+ lamination
- Overhaul/renovation: 2010 new digital drives by SIEMENS , New PLC Siemens S7 , new register control , new motors and drives on infeed and outfeed driven calender nips, new machine computer, new Video camera
- Drive: Cardan
- Trolley system: Yes
- Web width (mm): 1220
- Print width (mm): 1200
- Print repeat range (mm): 400-900 mm
- Drying specifications: Unit 1 single extended ; stations 2-7 single standard hood; station 8 reversible two zones double hood, station 9 reversible two zones double hood extended 2x 3 mt ;station 10 two zone super extended 2x 5 mt ; thermo oil heaters, automatic recirculation system with LEL control by NIRA
- Drying heat surce: Thermo oil heaters
- Unwinder type: Turret automatic diam 900 mm
- Max reel diameter unwinder (mm): 900
- Rewinder type: Turret automatic
- Max reel diameter rewinder (mm): 900
- Videocamera: Eltromat 3 ccd with monitor 42″
- Register controll: GRAFYKONTROL CR 33 LT new 2010
- Vyscosity control: SELECTRA new
- Corona treatment : YES double side for secondary unwinder
- Print cylinders: 500
- …
